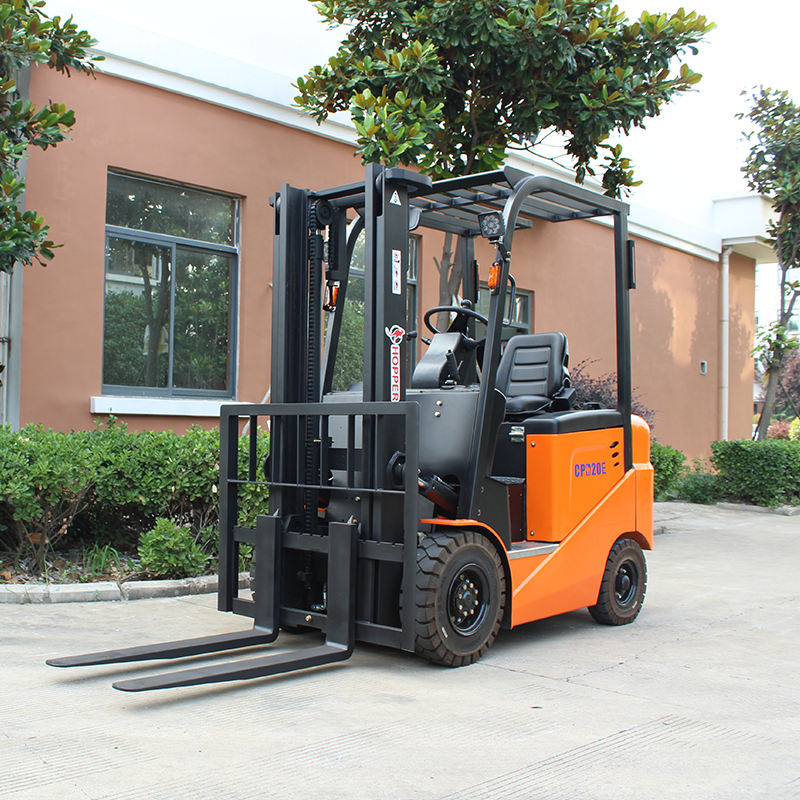

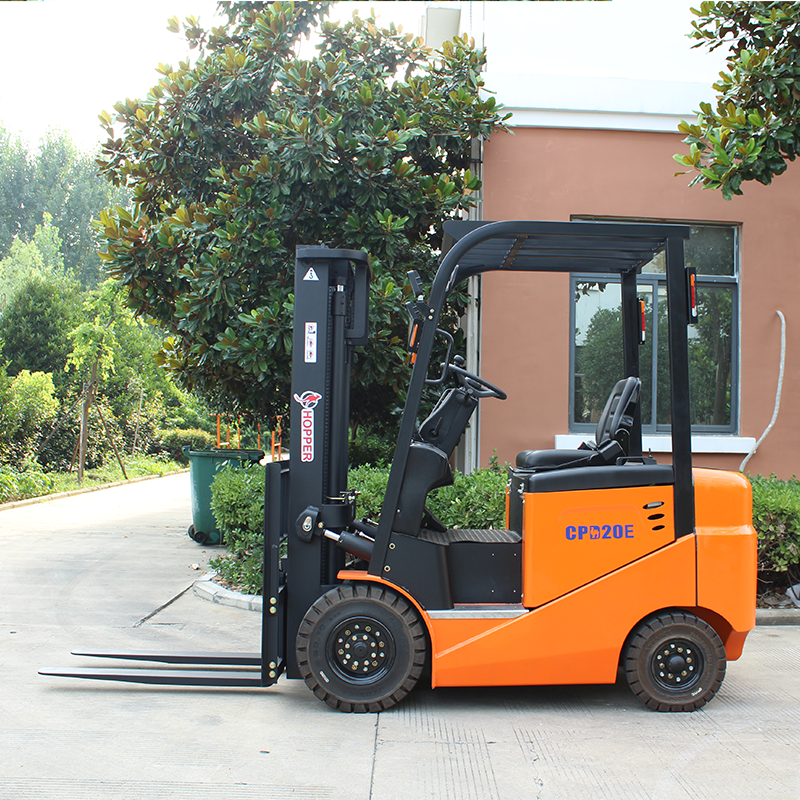

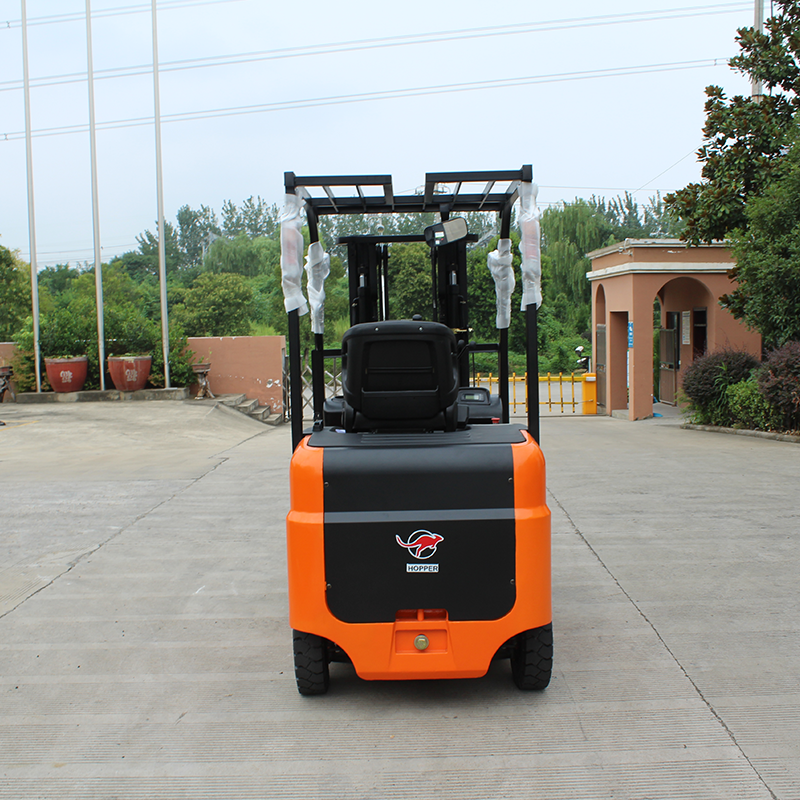

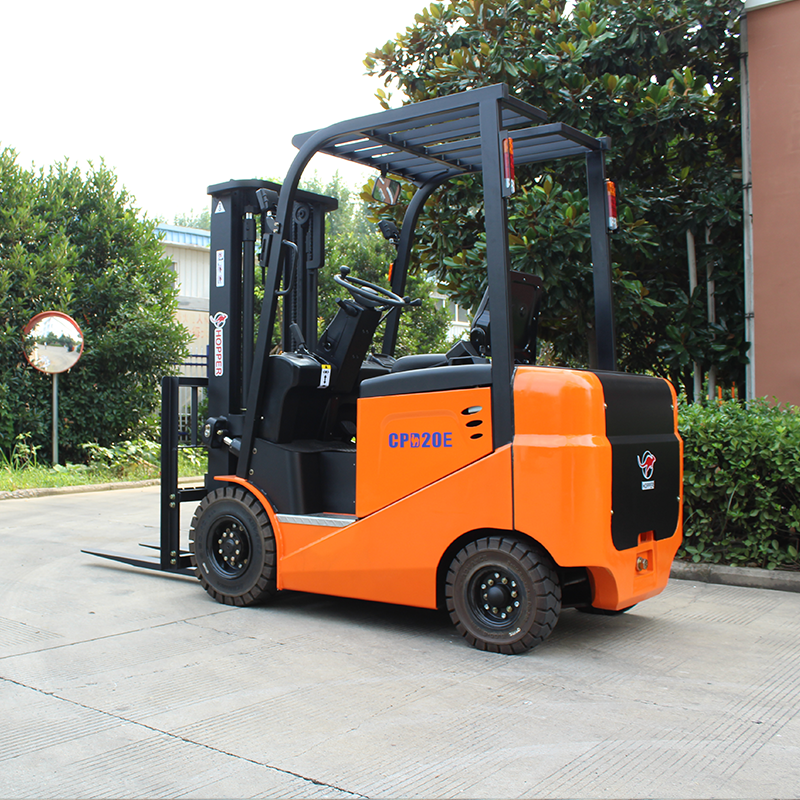

2.0-3.5Ton Series Counterbalance Electric Forklift Truck CPD20E
2.0-3.5Ton Series Counterbalance Electric Forklift Truck CPD20E
2.0-3.5Ton Series Counterbalance Electric Forklift Truck CPD20E
2.0-3.5Ton Series Counterbalance Electric Forklift Truck CPD20E
2.0-3.5Ton Series Counterbalance Electric Forklift Truck CPD20E
2.0-3.5Ton Series Counterbalance Electric Forklift Truck CPD20E

2.0-3.5Ton Series Counterbalance Electric Forklift Truck CPD20E

Load capacity/Rated load:  2000KG



Overall length (with out fork): 2210 MM



Overall width: 1070 MM



Turningradius:2010MM



Imported CURTIS controller/SME

Identification 1.1 Manufacture's type designation                 HOPPER
1.2 Model       CPD20E
1.3 Power type     Electric
1.4 Type of operation     Seated
1.5 Load capac t/ratedload Q k 2000
1.6 Load center distance   mm 500
1.7 Load distance, center of drive ax e t fork L2 mm 430
1.8 Whee base L1 mm   1400
Weight 2.1 Weight(with battery)   kg 3480
2.2 Front axle rated load laden     kg 4822 5
2.3 Rear axie rated load laden   kg 658
2.4 Front: axlie rated load unladen   kg 1462
2.5 Rea axle rated load unladen   kg 2018
Dimension 3.1 Mast/iork crrage E It fonward backward a/   44720
3.2 Mast lowered height H1 mm 2120
3.3 reelt height H3 mm /
3.4 Stand ard mast lting height H mm 3000
3.5 Extended mast height H2 mm 3995
3.6 Overheadload guardheight H4 mm 2180
3.7 Seat height   mm 1180
3.8 Coupling height   mm 425
3.9 Dealllength (wth fork)   L mm 3280
3.1 Overall length (with out fork L mm 2210
3.11 Overall width   W1 mm 1070
3.12 Fork Demension TxWxL4 mm 40/122/1070
3.13 Type offork carriageA,B     1S02328 2A
3.14 Fork carrlage width   mm 1038
3.15 Fork carriage spread width W5 mm 250-990
3.16 Ground clearance under mast laden H5 mm 120
3.17 Ground clearance at center of w heelbase H6 mm 130
3.18 Aisle width forlengthwayspallet size 1000x 1000 Ast mm 3640
3.19 Aisle wdthforlengthwayspalle size 1200 1200 Ast mm 3840
3.2 Turming radus r mm 2010
Tyre/Chasss 4.1 TyreType     Solid rubber wheel
4.2 Tyre Size(Front)     6.50-10
4.3 TyeSize(Rear     5.00-8
4.4 wheels Quantty, front/rear px=drving whees)       2/2
4.5 Frontwheespan     mm 890
4.6 Rear wheelspan   mm 920
Performance 5.1 Traveling Speed(laden/unladen)     km/h   44909
5.2 ifting Speed(aden/unladen)   mm/s 280/320
5.3 Lowering Spee aden/unladen)   mm/s 460/430
5.4 Max.GradientPerformance 5min (adenunladen)   % 44910
5.5 Service Brake Type     Hydraulic
5.6 Parking Brakeiype     Mechanical
Power Unit 6.1 Drive Motor Rating(AC) S2 -60min   kW    8
6.2 ui Motor Rating0C)S3-15%   kW 12
6.3 Battery Voltage/CapacityK5   V/Ah 48/450
6.4 Battery Weight     kg 700
6.5 M ax Alowabi e battery size     mm 977x660x435
Others 7.1 Controller Brand     SME
7.2 Contrller Model     500A
7.3 Operating pressurefor attachment      bar 140
7.4 Oi volume for attachments    4/min 65
7.5 Hydrauic oi tank volume      L 33
7.6 Sound Level at driver's ear according to EN 12053     dB 72
