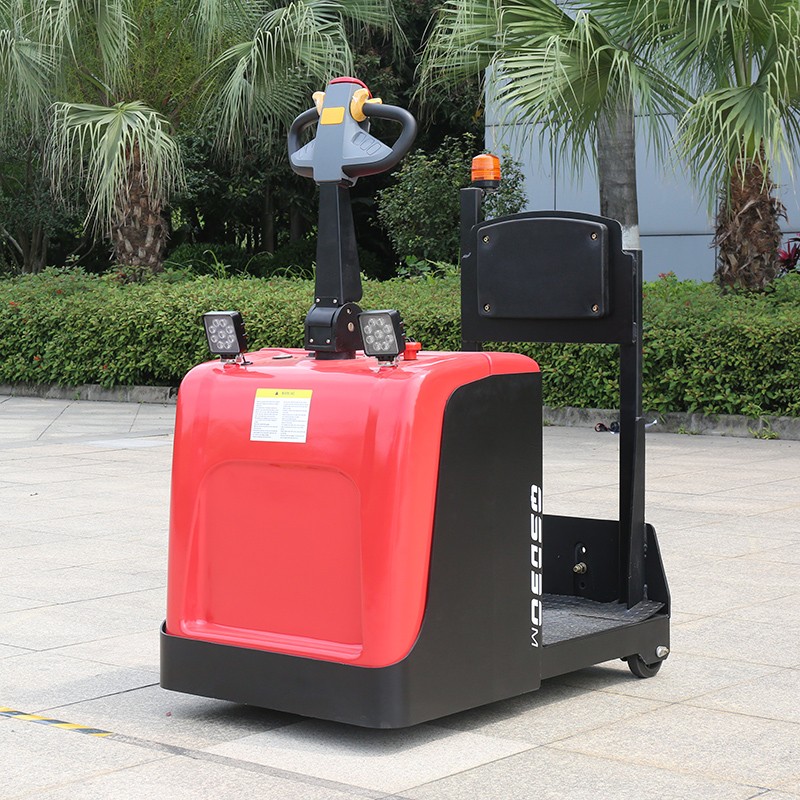

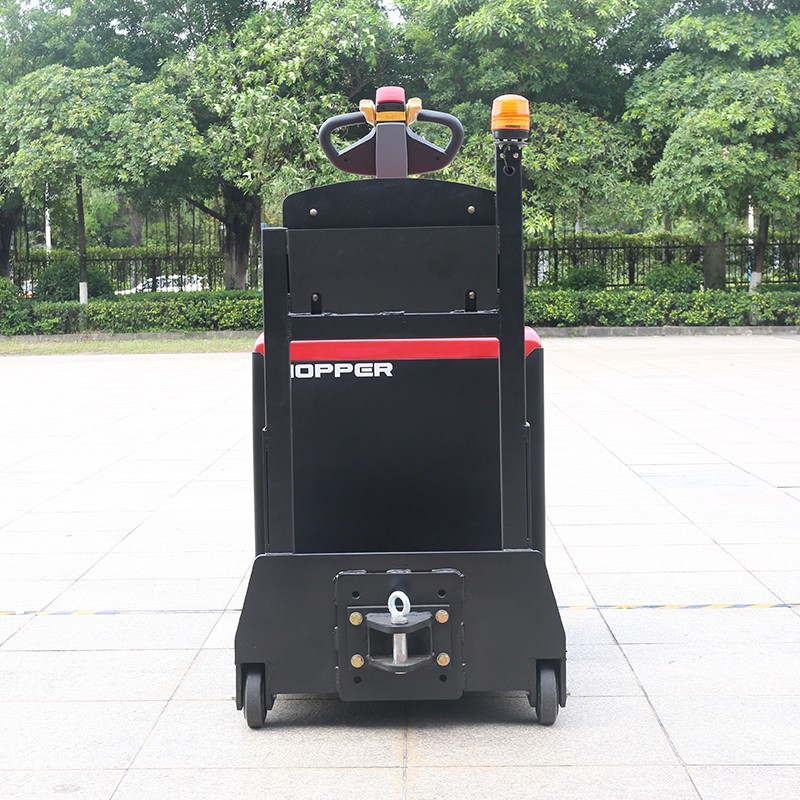

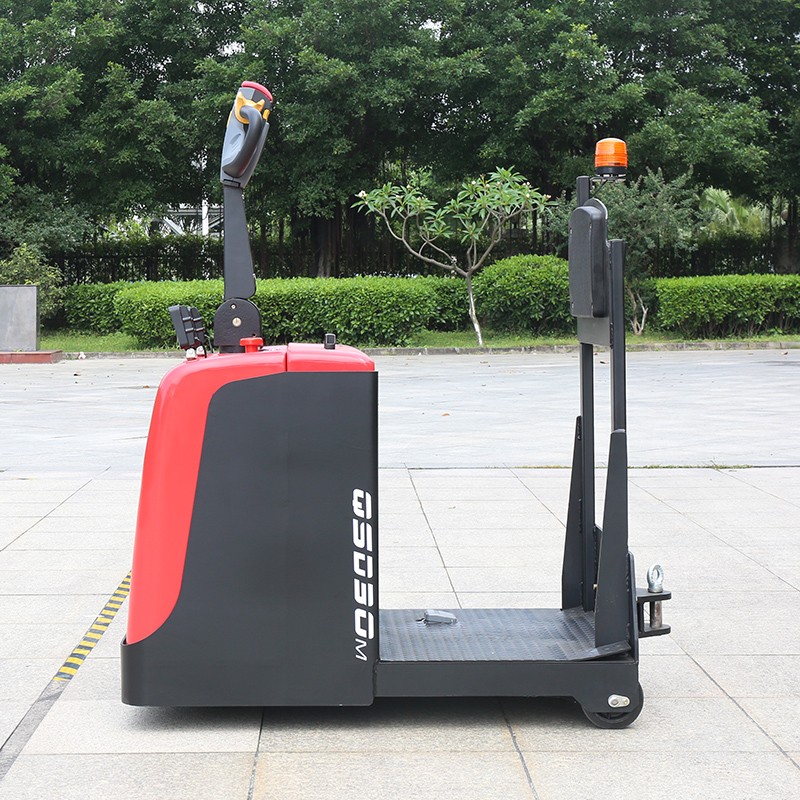

Standing Tractor QSD30M

Load capacity/Rated load: 350KG

Overall length (Cargo fork):1 455MM

Overall width:800MM

Travel speed(aden/unladen):Referto the climbing curve

Imported CURTIS controller

Inquire Now

ldentification	1.1	Manufacture's type designation	HOPPER
	1.2	Model			QSD20M	QSD30M
	1.3	Power Type			Electric
	1.4	Type ofoperation			Stand-on
	1.5	Steering Mode			Electric Power Steering
	1.6	Wheelbase	y	mm	950	950
Weight	2.1	Total Weight(with battery)		kg	550	550
Weight	2.2	Axle Load(unladen):Drive side/Load-bearing side		kg	350/200	350/200
Dimension	3.1	Overall length	L1	mm	1 455	1455
	3.2	Overall width	W1	mm	800	800
	3.3	Overall height	h14	mm	1610	1610
	3.4	Couping Height(Hook center above ground)	h10	mm	175/225/275	175/225/275
	3.5	Standing Platform	h2	mm	175	175
	3.6	Ground Clearance at center of wheelbase (Min)	m1	mm	65	65
	3.7	Turning Radius	Wa	mm	1280	1280
Tyre	4.1	Tyre Type			Polyurethane/Rubber
	4.2	Tyre Size(Front)		mm	230x75	230x75
	4.3	Tyre Size(Rear)		mm	254x100	254x100
	4.4	Wheels Quantity,front/rear (x=driving wheels)			1x/2	1x/2
Performance	5.1	Traveling Speed(laden/unladen)		Km/h	Referto the climbing curve
	5.2	Rated Draw-bar Pull	F	N	600	600
	5.3	Max.Gradient Performance S25min laden/unladen)		%	Referto the climbing curve
	5.4	Service Brake Type			Electromagnetic
	5.5	Parking Brake Type			Electromagnetic
Power Unit	6.1	Drive Motor Rating(AC) S2-60min		kW	1.5	1.5
	6.2	Battery Vo ltage/Capacity K5		V/Ah	24/210	24/210
	6.3	Battery Weight		kg	188	188
Others	7.1	Controller Brand			CURTIS	CURTIS
	7.2	Controller Model			1232E	1232E
	7.3	Sound levelat driver's ear according to EN 12053		dB	65	65
