Load capacity/Rated load: 1500KG
Overall length（L1/L2）: 1950/2415MM
Overall width:790MM
Travel speed(aden/unladen):5/5.5 KM/H
Imported CURTIS controller
| Identification | 1.1 | Manufacture's type designation | HOPPER | |||
| 1.2 | M odel | CDD15H | CDD15HE | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type ofoperation | Stand-on | ||||
| 1.5 | Steering M ode | Mechanical | ||||
| 1.6 | Load capacity/rated load | Q | kg | 1500 | 1500 | |
| 1.7 | L oad center distance | C | mm | 500 | 500 | |
| 1.8 | Wheelbase | y | mm | 1235 | 1235 | |
| Weight | 2.1 | Total Weight(with battery) | kg | 780 | 770 | |
| 2.2 | Axle Load(laden):Drive side/Load-bearing side | kg | 880/1400 | 880/1390 | ||
| 2.3 | Axle Load(unladen):Drive side/Load-bearing side | kg | 570/210 | 560/210 | ||
| Dimension | 3.1 | Overall Length | L1/L2 | mm | 1950/2415 | 1950/2415 |
| 3.2 | Overall Width | W1 | mm | 790 | 790 | |
| 3.3 | Lift Height | h1 | mm | 3000 | 3000 | |
| 3.4 | Lowered mast height | h2 | mm | 2035 | 2035 | |
| 3.5 | Extended mast height | h4 | mm | 3505 | 3505 | |
| 3.6 | Fork Dimension | l/e/s | mm | 1150×160×60 | 1150×160×60 | |
| 3.7 | Width ofFork | b2 | mm | 550/685 | 550/685 | |
| 3.8 | Min Fork Height | h3 | mm | 85 | 85 | |
| 3.9 | Ground Clearance at center of wheelbase (Min) | m1 | mm | 30 | 30 | |
| 3.1 | Height of Operating Handlebar(Min./Max) | h14 | mm | 1000/1450 | 1000/1450 | |
| 3.11 | Turning Radius | Wa | mm | 1580/2010 | 1580/2010 | |
| 3.12 | Ase width for lethasisle 21001 qmci rtracte/epand | Ast mm | 2445/2880 | 2445/2880 | ||
| 3.13 | Aisle width foenlehthsalpsles:a80200Peca rtraced/expanded) | Ast mm | 2380/2810 | 2380/2810 | ||
| Tyre | 4.1 | Tyre Type | Polyurethane | Polyurethane | ||
| 4.2 | Tyre: Size(Front) | mm | φ85x70 | φ85x70 | ||
| 4.3 | Tyre Sizel(Auilary wheel) | mm | φ130x50 | φ130x50 | ||
| 4.4 | Tyre Size(Driving Wheel) | mm | φ250x80 | φ210x70 | ||
| 4.5 | Wheels Quantity, front/rear (x=drivingwheels) | 2/1x+2 | 2/1x+2 | |||
| 5.1 | Traveling Speed(laden/unladen) | Km/h | 5/5.5 | 44624 | ||
| 5.2 | Lifting Speed(aden/unladen) | mm/s | 80/125 | 80/125 | ||
| 5.3 | Lowering Speed(laden/unladen) | mm/s | 150/90 | 150/90 | ||
| 5.4 | M ax.Gradient performance(laden/unladen) | % | 44691 | 44626 | ||
| 5.5 | Service Brake Type | Electromagnetic | Electromagnetic | |||
| 5.6 | Parking Brake Type | Electromagnetic | Electromagnetic | |||
| PowerUnit | 6.1 | Drive Motor rating(AC) S2 -60min | kW | 1.5(AC) | 0.75(DC) | |
| 6.2 | Lift Motor rating(DC) S3- 15% | kW | 2.2 | 2.2 | ||
| 6.3 | _Battery Voltage/Capacity K5 | V/Ah | 24/100 | 24/100 | ||
| 6.4 | Battery Weight | kg | 60 | 60 | ||
| Others | 7.1 | Controller Brand | ZAPI | CURTIS | ||
| 7.2 | Controller Model | AC0 | 1212P | |||
| 7.3 | Sound level atdriver sear according to EN 12053 | dB | 70 | 70 | ||
| CDD15H/CDD15HE Mast parameters | ||||||
| Designation | Lift height | Lowered mast height | Extended mast height | load capacity/rated load | ||
| mm | mm | mm | kg | |||
| One-stage | 1600 | 2040 | 2040 | 1500 | ||
| Two-stage | 2500 | 1785 | 3005 | 1500 | ||
| 3000 | 2035 | 3505 | 1000 | |||
| 3500 | 2285 | 4005 | 800 | |||

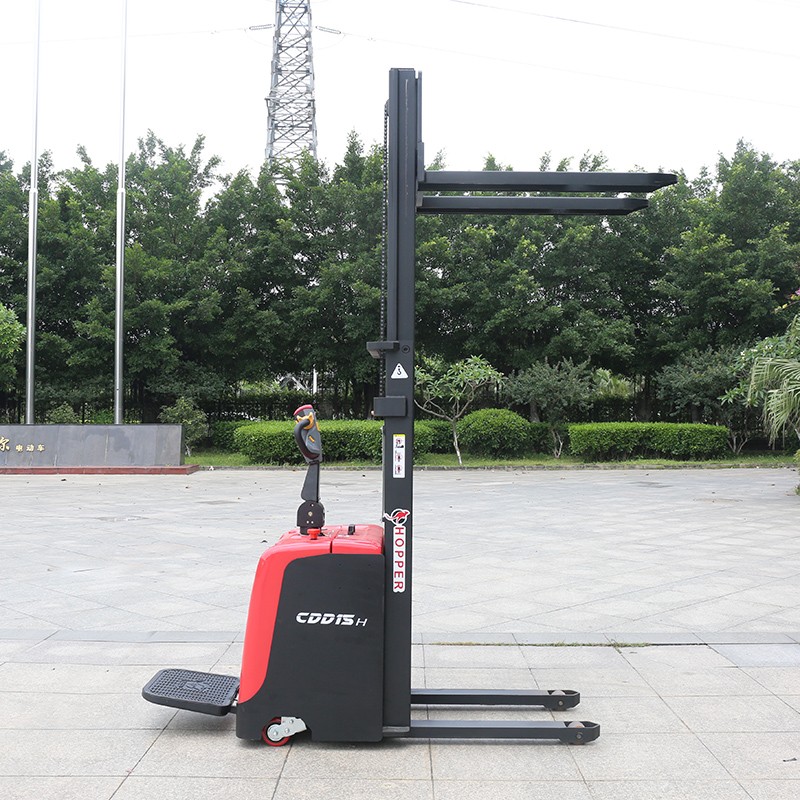

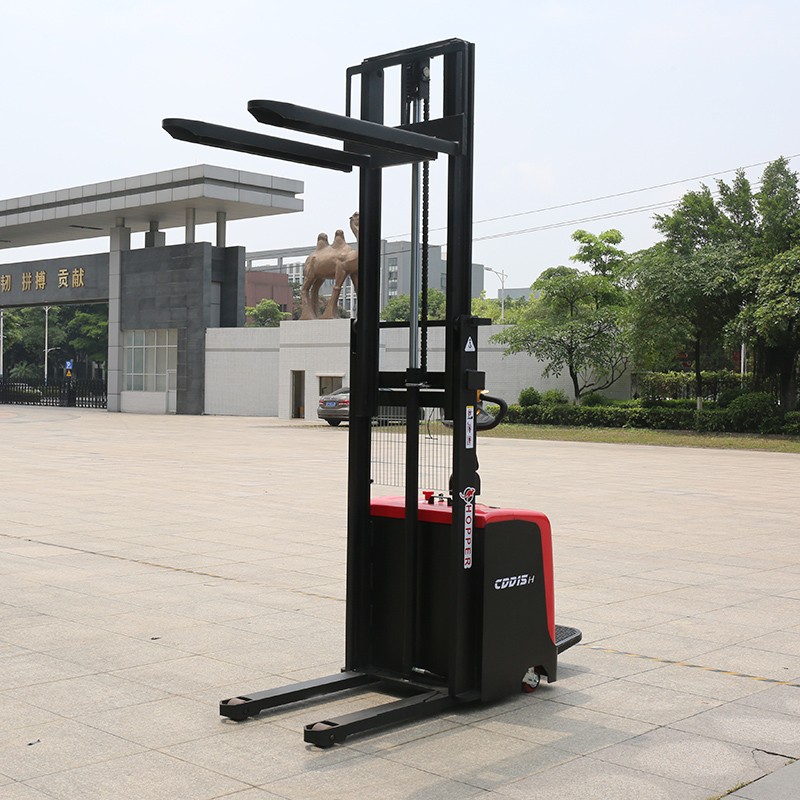

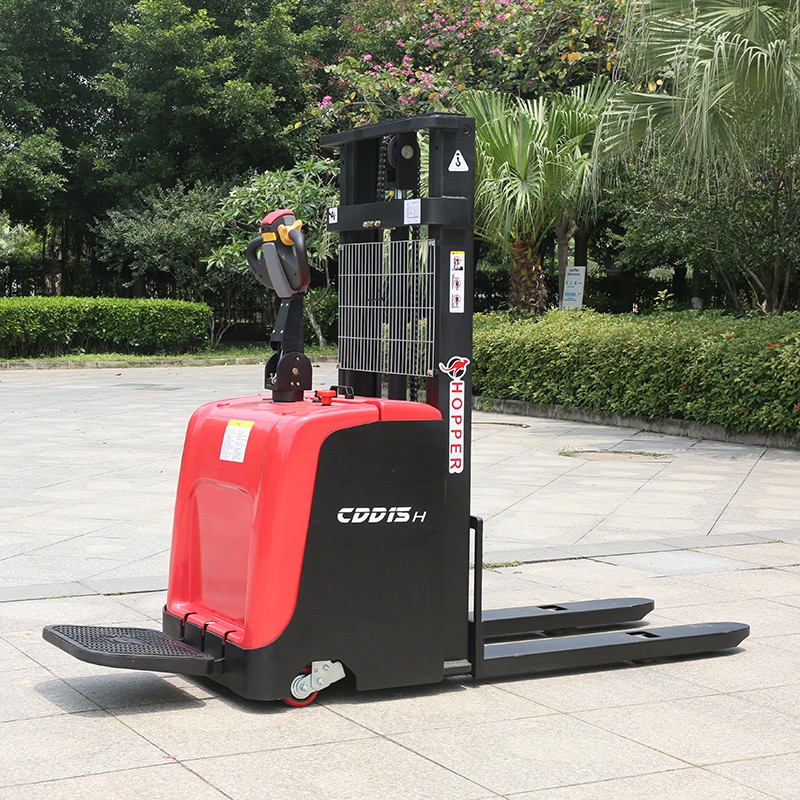

Hopper pedestrian pallet stacker is a ideal product developed for warehouse and logistics applications: Higher cost performance and lower maintenance cost; Floating universal wheels to ensure stable driving; CURTIS control system, precise control and higher efficiency; Adopting permanent magnet motor with excellent performance and low heat generation; Standard 80Ah maintenance-free battery, optional 100Ah battery, which can meet different use time; The pallet stracker has regenerative braking and slope protection against sliding down to ensure safe operation; Easy to maintain, disassemble and assemble with one-piece cover.
