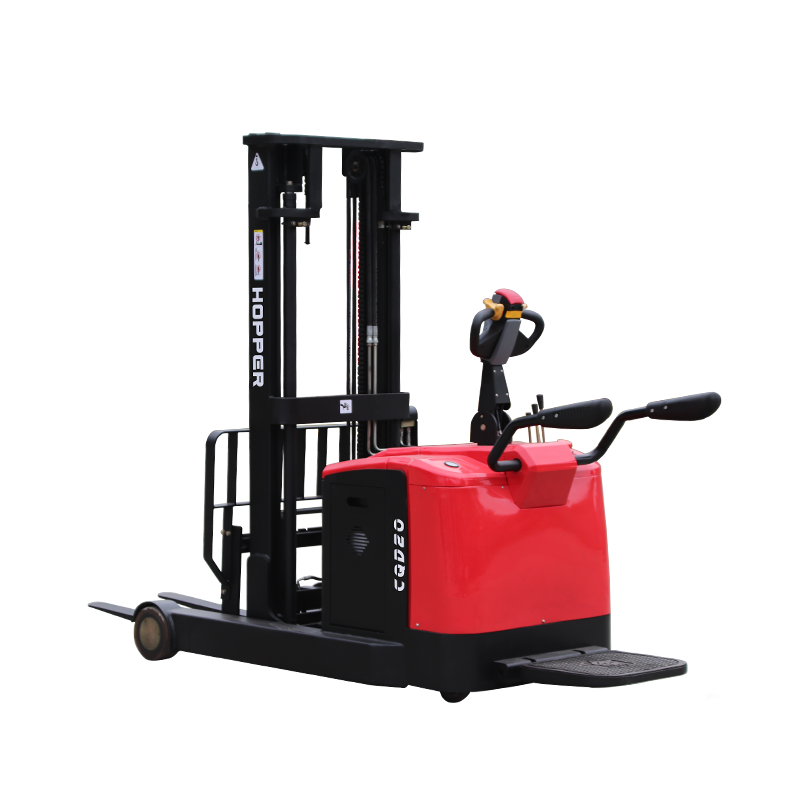

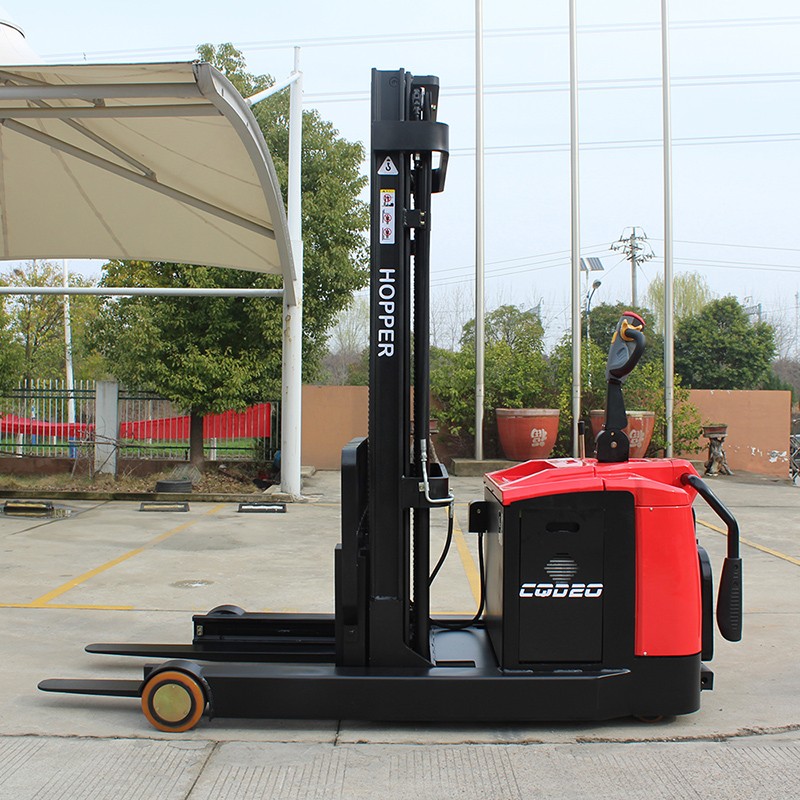

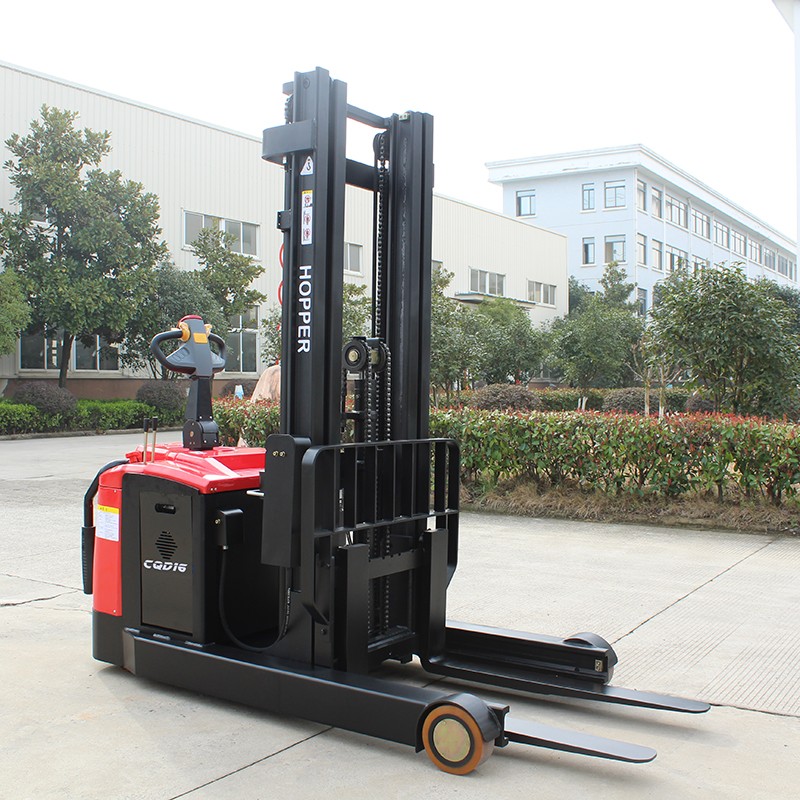

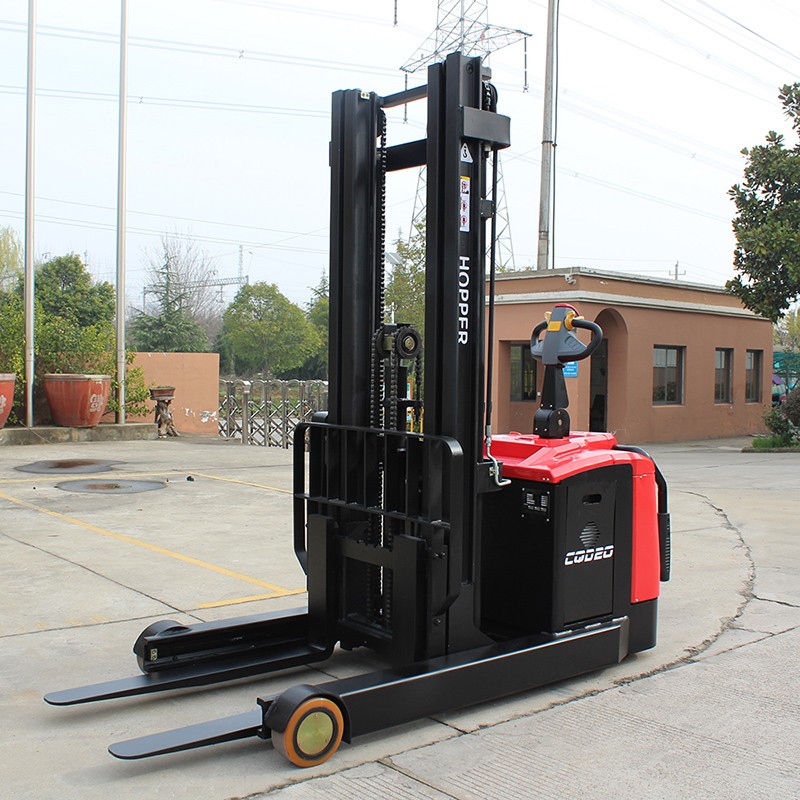

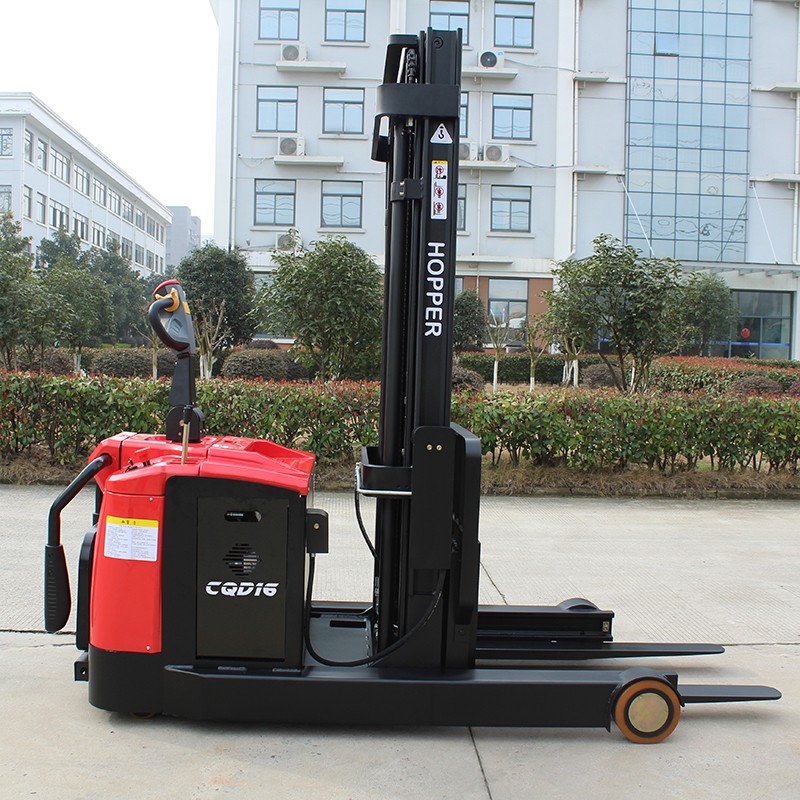

The AC brushless drive motor is maintenance-free and cost-saving;
CURTIS AC control system, accurate control, higher efficiency
Equipped with electronic steering, improve efficiency.
Can be different lifting heights
The imported integrated control system, smooth travel control, superior speed regulation performance;
| Identification | 1.1 | Manufacture's type designation | HOPPER | ||
| 1.2 | Model | CQD16 | |||
| 1.3 | Power Type | Electric | |||
| 1.4 | Type of operation | Stand-on | |||
| 1.5 | Steering Mode | Electric Power Steering | |||
| 1.6 | Load capacity/rated load | Q | kg | 1600 | |
| 1.7 | Load center distance | C | mm | 600 | |
| 1.8 | Load distance, the center of drive axle to fork | x | 160 | ||
| 1.9 | Wheelbase | y | mm | 1440 | |
| Weight | 2.0 | Total Weight(with battery) | kg | 1980 | |
| 2.1 | Axle Load(laden):Drive side/Load-bearing side | ||||
| 2.3 | Axle Load(unladen):Drive side/Load-bearing side | kg | / | ||
| Dimension | 3.1 | Overall Length (Pedal retracted/expanded) | L | 2335/2750 | |
| 3.2 | Overall Width | W1/W2 | mm | 880/1030 | |
| 3.3 | Lift Height | h1 | mm | 3000 | |
| 3.4 | Lowered mast height | 2 | 204 | ||
| 3.5 | Extended a mast height | h4 | mm | 3890 | |
| 3.6 | Free lift height | h5 | / | ||
| 3.7 | Fork Dimension | l/e/s | mm | 1070×100×40 | |
| 3.8 | Fork Mounting Class | 2A | |||
| 3.9 | Fork carriage spread width | b2 | mm | 220-690 | |
| 3.1 | Fork carriage tilt forward/backward | α/β | ° | 44596 | |
| 3.11 | Distance between supporting arm and load side | b | 748 | ||
| 3.12 | Reach Distance | L3 | mm | 580 | |
| 3.13 | Height of supporting arm | h6 | mm | 235 | |
| 3.14 | Ground Clearance at the center of wheelbase (Min) | m1 | 52 | ||
| 3.15 | Height of Operating Handlebar(Min./Max) | h14 | mm | 1000/1450 | |
| 3.16 | Turning Radius (Pedal retracted/expanded) | Wa | 1 1 /2 45 | ||
| 3.17 | Aisle width for lengthways(Pallet size 1000*1200)(Pedal retracted/expanded) | Ast | mm | 2750/3170 | |
| 3.18 | Aisle width for lengthways(Pallet size 800*1200)(Pedal retracted/expanded) | Ast | mm | 2830/3250 | |
| Tyre | 4.1 | Tyre Type | Polyurethane | ||
| 4.2 | Tyre Size(Front) | 2 0 8 | |||
| 4.3 | Tyre Size(Balance Wheel) | mm | φ115x55 | ||
| 4.4 | Tyre Size(Driving Wheel) | mm | φ230x75 | ||
| 4.5 | Wheels Quantity, front/rear (x=driving wheels) | 2/1x+2 | |||
| Performance | 5.1 | Traveling Speed (laden/unladen) | Km/h | 5/5.5 | |
| 5.2 | LiftingSpeed(laden/unladen) | mm/s | 80/130 | ||
| 5.3 | Lowering Speed(laden/unladen) | mm/s | 150/100 | ||
| 5.4 | Max.Gradient Performance S2 5min (laden/unladen) | % | 5月8日 | ||
| 5.5 | Service Brake Type | Electromagnetic | |||
| 5.6 | Parking Brake Type | Electromagnetic | |||
| Power Unit | 6.1 | Drive Motor Rating(AC) S2-60min | 1.5 | ||
| 6.2 | Lift Motor Rating(DC) S3 15% | kW | 3 | ||
| 6.3 | Battery Voltage/Capacity K5 | V/Ah | 24/240 | ||
| 6.4 | Battery Weight | kg | 200 | ||
| Others | 7.1 | Controller Brand | CURTIS | ||
| 7.2 | Controller Model | 1232E | |||
| 7.3 | Sound level at driver's ear according to EN 12 053 | dB | 70 | ||
| CQD16 Mast parameters | |||||
| Designation | Lift height | Lowered | Extended | Free lift | Load capacity |
| mm | mm | mm | mm | kg | |
| One-stage | 1600 | 2200 | 2500 | 1600 | 1600 |
| Two-stage | 2500 | 1790 | 3390 | / | 1600 |
| 3000 | 2040 | 3890 | / | 1600 | |
| 3500 | 2290 | 4390 | / | 1200 | |
| 4000 | 2540 | 4890 | / | 1000 | |
| Three-stage full free mast | 3500 | 1710 | 4390 | 1205 | 1200 |
| 4000 | 1873 | 4890 | 1370 | 1000 | |
| 4500 | 2040 | 5390 | 1500 | 800 | |
| 5000 | 2207 | 5890 | 1710 | 500 | |
