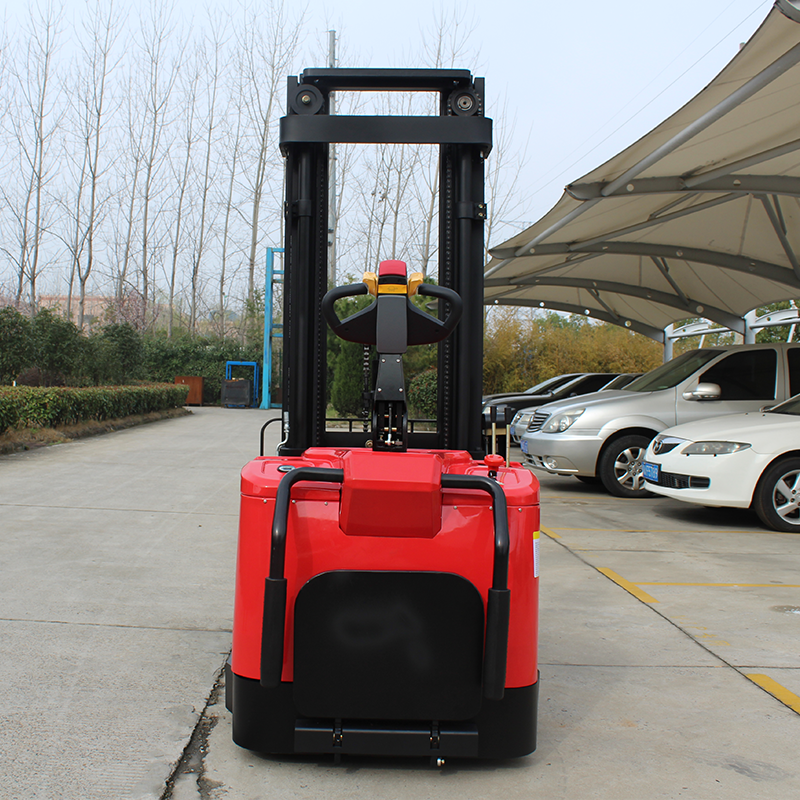

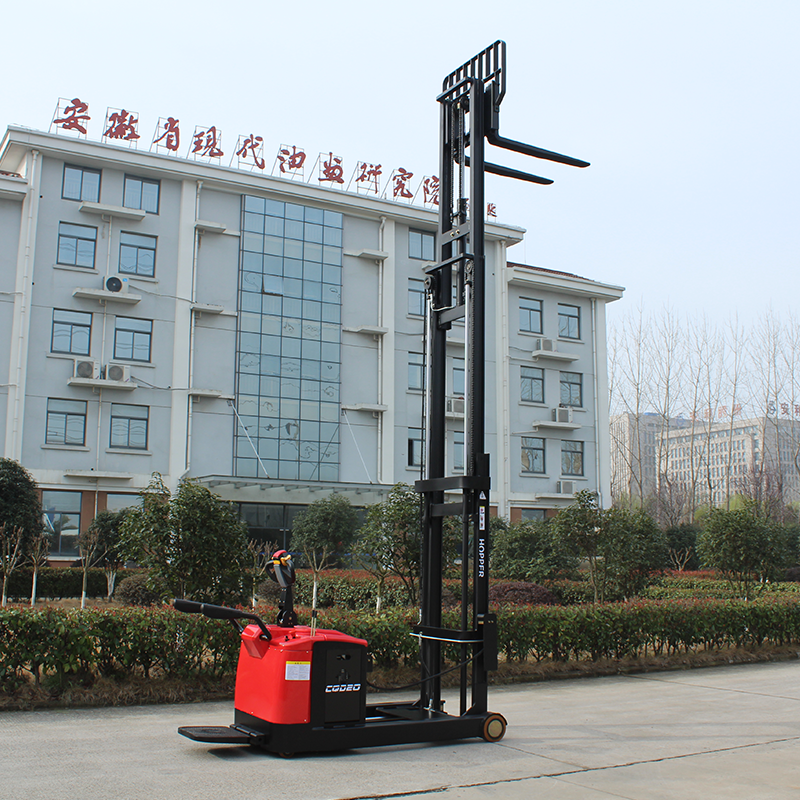

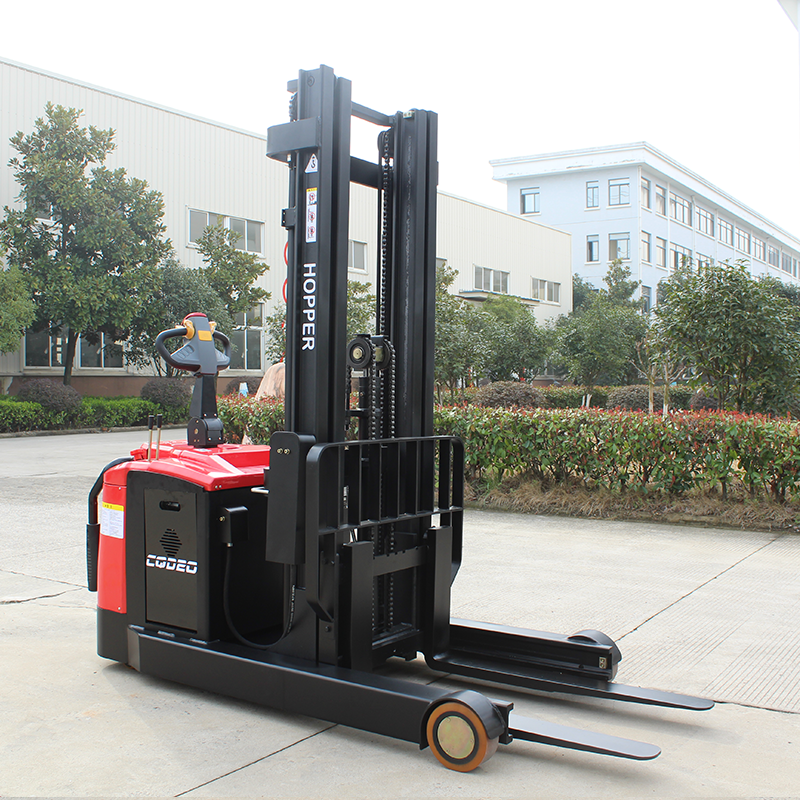

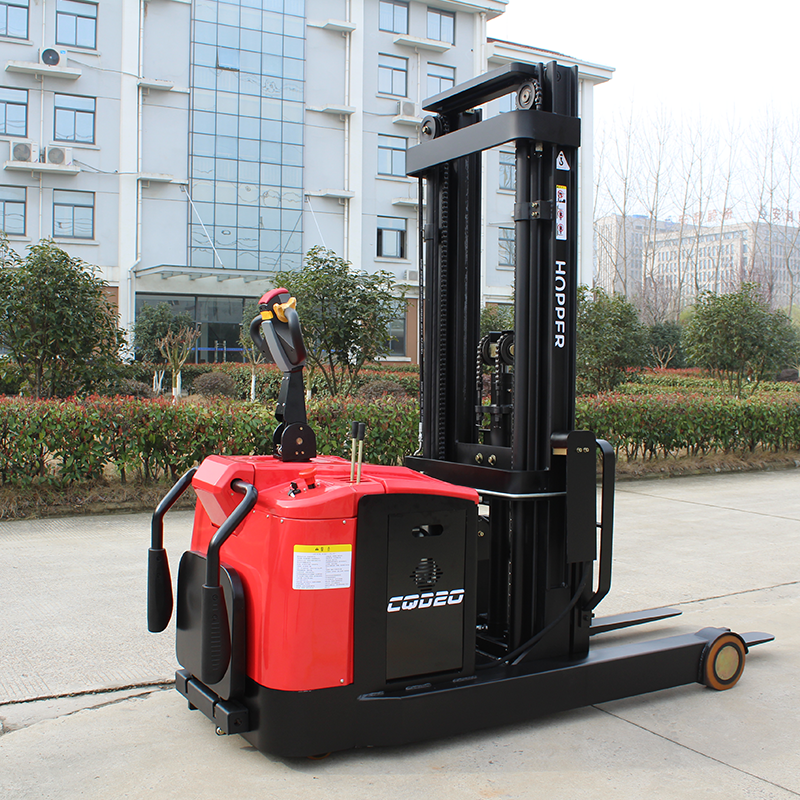

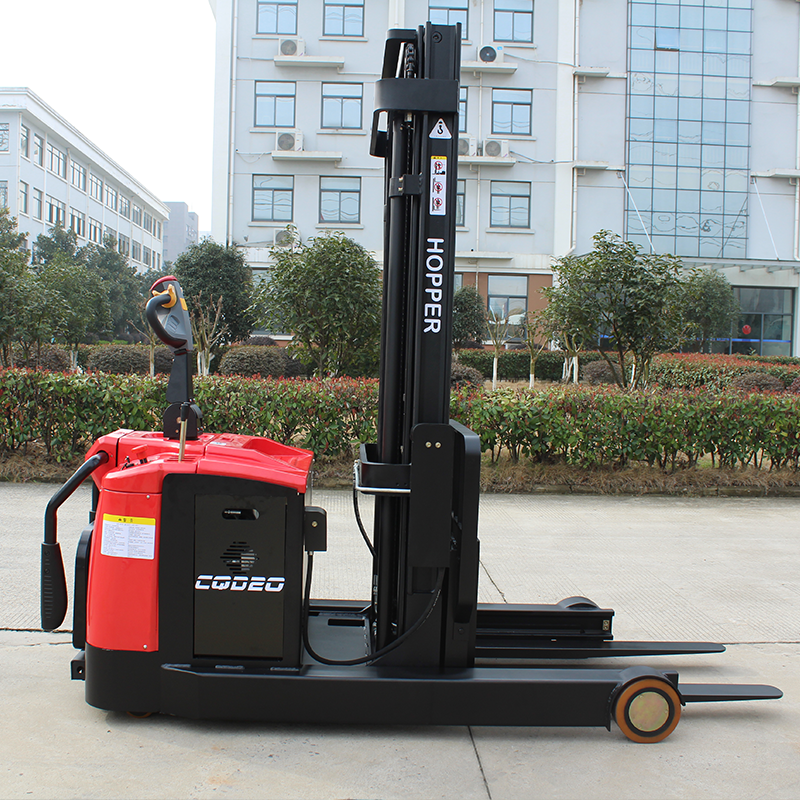

Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20
Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20
Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20
Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20
Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20
Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20
Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20

Electric Reach Truck 1.6 ton ~ 2.0 ton Series CQD20

The AC brushless drive motor is maintenance-free and cost-saving;



CURTIS AC control system, accurate control, higher efficiency



Equipped with electronic steering, improve efficiency.



 Can be different lifting heights



The imported integrated control system, smooth travel control, superior speed regulation performance;



The drive system adopts the guide rail damping structure, ensure that the driving wheel is always in contact with the road surface, ground contact,



MODEL NO. CQD20B
Performance 1 Maximum load capacity   kg 2000
2 with load center at Q mm 500
3 Maximum lifting height H3 mm 3000
4 Reach distance E mm 610
5 Tiltiing angle (up/down) a/b °  3/5
6 Travel speed, with load/without load   km/h 44846
7 Lifting speed, with load/without load   mm/s 270/375
8 Ascend slope ability (without load )     % 15
9 Ascend slope ability (with load ) 3 minutes rated, 1.5Km/h and above 1.5Km/h   % 10
  10 Weight (with battery)   kg 2900
Dimensions 11 Length Mast length L mm 1910
12 Overall length (frame not moved forward, including fork) L1 mm 2360
13 Overall length (frame moved forward, including fork)   mm 2985
14 Width Overall width B mm 1270
15 Fork inside spacing   mm 920
16 Frame   mm 1270
17 Height Fork   mm 310
18 Mast lowered height H1 mm 2100
19 Max height(mast lifted with backrest) H4 mm 3900
20 Overhead guard height H2 mm 2260
21 Front suspension distance Move the mast to the front X mm 160
22 Standing plate height     mm 340
23 Wheel base   Y mm 1525
24 Minimum Ground Clearance     mm 80
25 Wheel tread Front wheel   mm 1160
26 Rear wheel   mm 760
27 Fork size width/thickness/length l/b/s mm 122/40/1070
28 For outside distance Min./Max.   mm 250-820
29 Min.Turning radius       Wa mm 1820
30 Min intersecting aisle width (including 200mm clearance) 1000*1200 tray,1200 direction to use fork   mm 2820
31 Min intersecting aisle width (including 200mm clearance) 1000*1200 tray,1000 direction to use fork   mm 2900
32 Min intersecting aisle width (including 200mm clearance) 1100*1100 tray   mm 2855
Tires 33 Qty Load wheel/drive wheel/balance wheel     2002/1/2
34 Tire Load wheel   mm φ267×114
35 Drive wheel   mm φ343×135
36 Balance wheel   mm φ180×55
37 Material     PU
Driving system and controller 38 Driving motor Type     AC motor
39 Power   kw 6.5
40 Liftging motor Type     AC motor
41 Power   kw 12
42 Steering motor Type     AC motor
43 Power   kw 0.7
44 Controller Walking and hydraulic control     Curtis controller
45 Steering controller     Curtis controller
46 Brake type     Electromagnetic brake
47 Battery Voltage   V 48
48 Capacity   AH 400
49 Weight   kg 710
50 Battery change methods     Side pull type
51 Charger Type     Outside
52 Input     Three phase 380V
53 Output     48V60A
