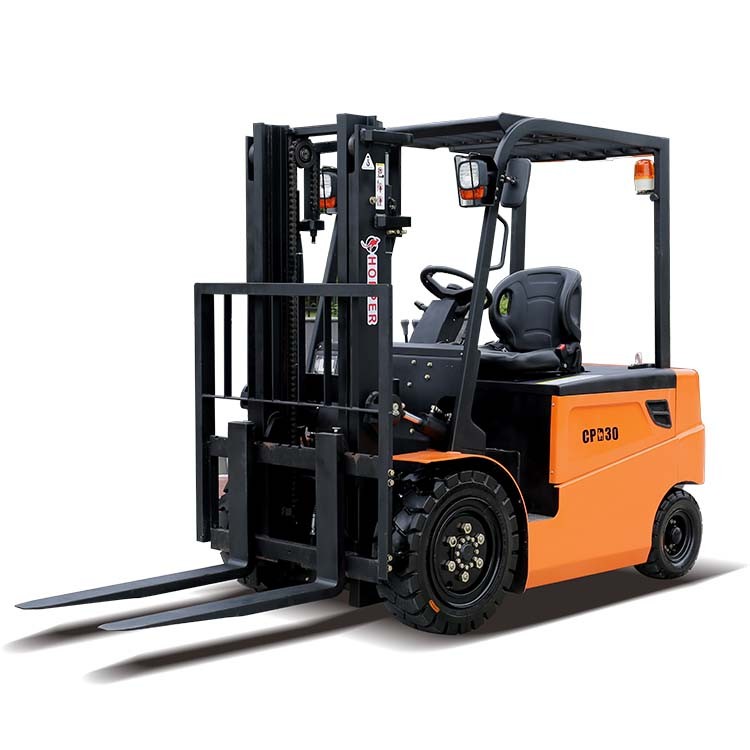

4 wheel 2.0-3.5 ton Series Counterbalance Electric Forklift Truck CPD35
4 wheel 2.0-3.5 ton Series Counterbalance Electric Forklift Truck CPD35
4 wheel 2.0-3.5 ton Series Counterbalance Electric Forklift Truck CPD35

4 wheel 2.0-3.5 ton Series Counterbalance Electric Forklift Truck CPD35

Load capacity/Rated load:3500KG



Overall length (Cargo fork):3735MM



Overall width:1220MM



Travel speed(aden/unladen):14/15 KM/H



Imported CURTIS controller





MODEL NO. CPD35
Maximum load capacity Q kg 3500
Overall length ( No fork) L' mm 2660
Overall length (Cargo fork) L mm 3735
Overall width W mm 1220
Height, mast lowered H1 mm 2085
Height of overhead guard(cabin) H4 mm 2250
Height, mast extended H2 mm 4225
Ground clearance, laden, below mast H5 mm 145
Ground clearance,unladen/laden,centre of wheelbase H7 mm 135
Front tread W3 mm 1005
Rear tread W2 mm 990
Wheelbase L1 mm 1690
Front overhang L2 mm 500
Lift height H mm 3000
Free lift height H3 mm 130
Mast tilt angle, front/rear α/β ° 44724
Max.lift speed unladen   mm/s 340
laden   mm/s 220
Max. travel speed unladen   km/h 14
laden   km/h 13
Turning radius R mm 2355
Max. gradability,laden   % 15
Load centre distance C mm 500
Curb weight(with battery)   kg 5130
Tyre Front     28×9-15-14PR
Rear     18*7-8
Motor Drive   KW AC11
Lift   KW DC14
Battery   V/Ah 72/550
Type of drive control     AC drive system, DC lifting system
Aisle width for lengthways 800*1000   mm 4255
Aisle width for lengthways 1000*1200   mm 4125
Container quantity(1*20GP/40HQ) 20GP/40HQ   units 44596
