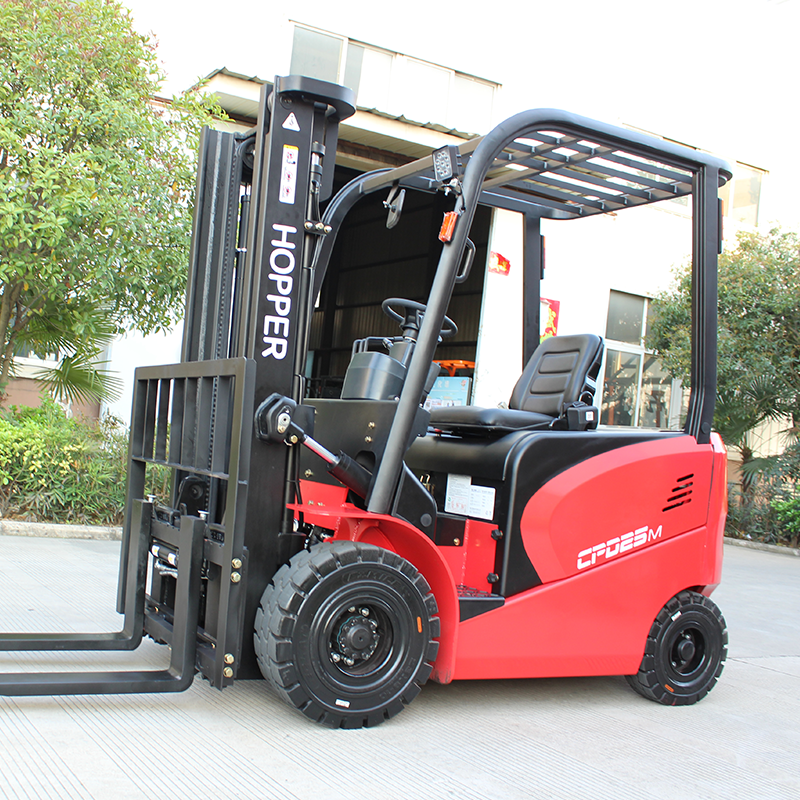

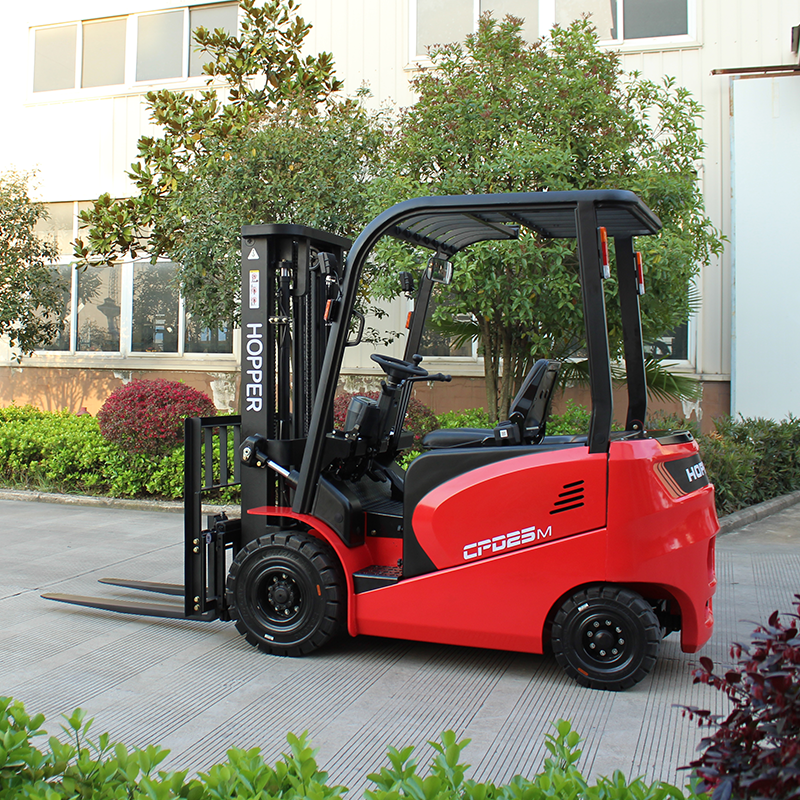

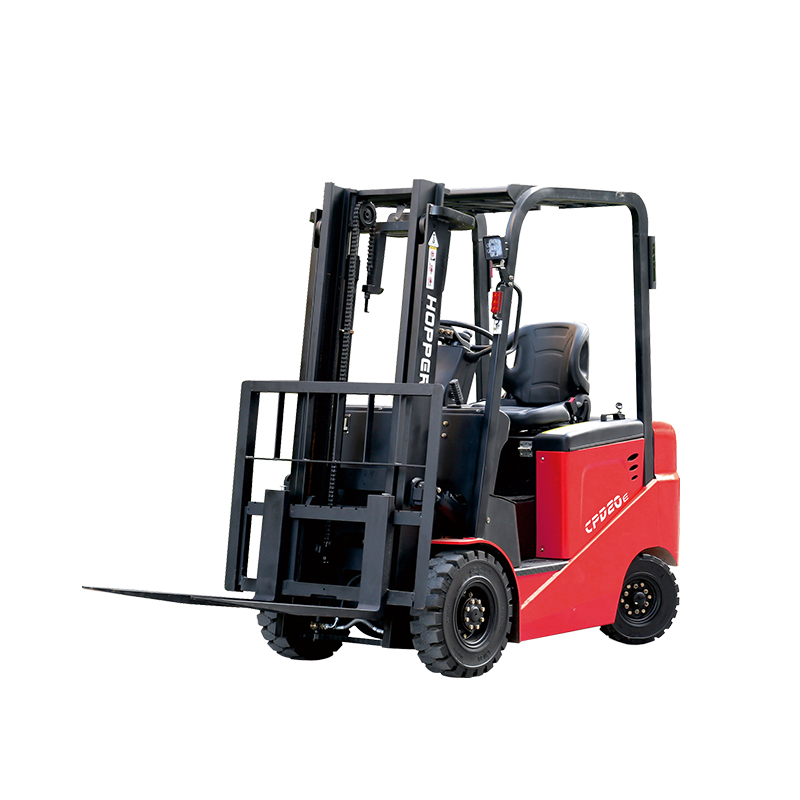

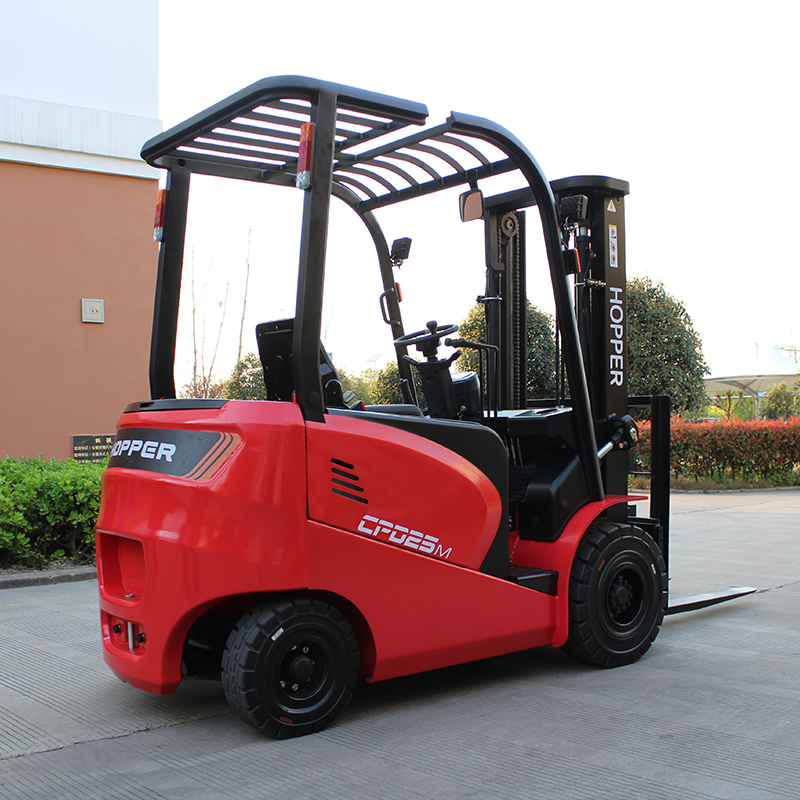

2.0Ton-2.5Ton Counterbalance Electric Forklift Truck CPD20M/25M
2.0Ton-2.5Ton Counterbalance Electric Forklift Truck CPD20M/25M
2.0Ton-2.5Ton Counterbalance Electric Forklift Truck CPD20M/25M
2.0Ton-2.5Ton Counterbalance Electric Forklift Truck CPD20M/25M
2.0Ton-2.5Ton Counterbalance Electric Forklift Truck CPD20M/25M

2.0Ton-2.5Ton Counterbalance Electric Forklift Truck CPD20M/25M

Load capacity/Rated load:2000KG-2500KG



Overall length(with fork):3400MM



Overall width:1265MM



Travel speed(aden/unladen):14/15 KM/H



Imported CURTIS controller



1.1 Manufacture's type designation
1.2 Model       CPD20-MA1   CPD25-MA1
1.3 Power Type       Electric   Electric
1.4   Type of operation       Seated Seated
1.5 Load capacity/Rated load Q kg 2000 2500
1.6 Load center distance C. mm 500 500
1.7 Load distance, center of drive axle to fork L2 mm 435 435
1.8   Wheelbase L1 mm 1485 1485
2.1 Mast/fork carriage tilt forward/backward a/B   44724 44724
2.2 Mast lowered height H1 mm 2050 2050
2.3 Free lift height H3 mm 140 140
2.4 Standard mast lifting height H   mm 3000 3000
2.5 Extended mast height H2 mm 4025 4025
2.6 Overhead load guard height   H4   mm 2125 2125
2.7   Seat height   mm 1070 1070
2.8   Coupling height   mm 308 308
2.9 Overall length(with fork) L mm 3400 3400
2.1 VOovrallength(without fork) L mm 2330 2330
2.11   Overall width   W1 mm 1265 1265
2.12 Fork Dimension TxxL4   mm   40/122/1070 40/122/1070
2.13 Type of fork carriage A,B     ISO23282A ISO2328 2A
2.14   Fork carriage width   mm 1038 1038
2.15 Fork carriage spread width   W5   mm 247-995 247 -995
2.16   Ground clearance under mast laden   H5 mm 115 115
2.17 Ground clearance at center of the wheelbase H6   mm 120 120
2.18 「 Aisle width for lengthways (pallet: size 1000x1000) Ast mm 3715 3715
2.19 Aisle width for lengthways (pallet: size 1200x1200) Ast mm 3915 3915
2.2   Tumingradius r   mm 2080 2080
3.1   Weight(with battery)   g 3630 4050
3.2 Front axle rated load laden   kg   5035 5820
3.3 Rear-axle rated Toad Taden   kg  595 730
3.4 Front axle rated load unladen   g 1775 1745
3.5 Rear-axle rated Toad unladen   kg 1855 2305
4.1 Tyre Type     Pneumatic tyre Pneumatic tyre
4.2 Front tyresize     23X9-10-18PR 23X9-10-18PR
4.3 Reartyre size     18X7-8-14PR 18X7-8-14PR
4.4  Tyre quantity (X=driving wheels)     2x/2 2x/2
4.5 Front-wheel span   mm 1058 1058
4.6   Rear-wheel span   mm 950 950
5.1 Travel speed(aden/unladen)   km/h 14/15 14/15
5.2 Lift speed(laden/unladen   mm/s   260/430   260/430
5.3   Lowering speed(aden/unladen)   mm/s 450/410 450/410
5.4 a entemarsldanlndehladen   % 15/20 15/20
5.5   Service Brake Type     Hydraulic Hydraulic
5.6 Parking Brake Type     Mechanical Mechanical
6.1   Drive motor rating S2 60min   kW 11 11
6.2 Lt motorrating at S315%   kW 12 12
6.3 Battery voltlnamalcapacictyKt   [ V/Ah 48/630 48/630
  (600-x-700) (600-x-700)
6.4 Battery Weight   [ kg 990 990
