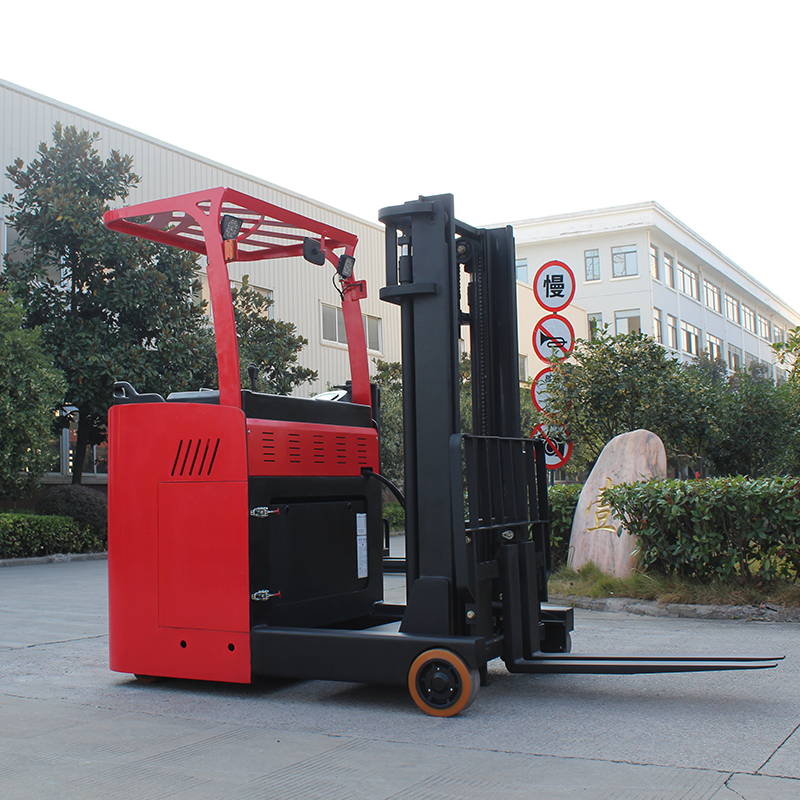

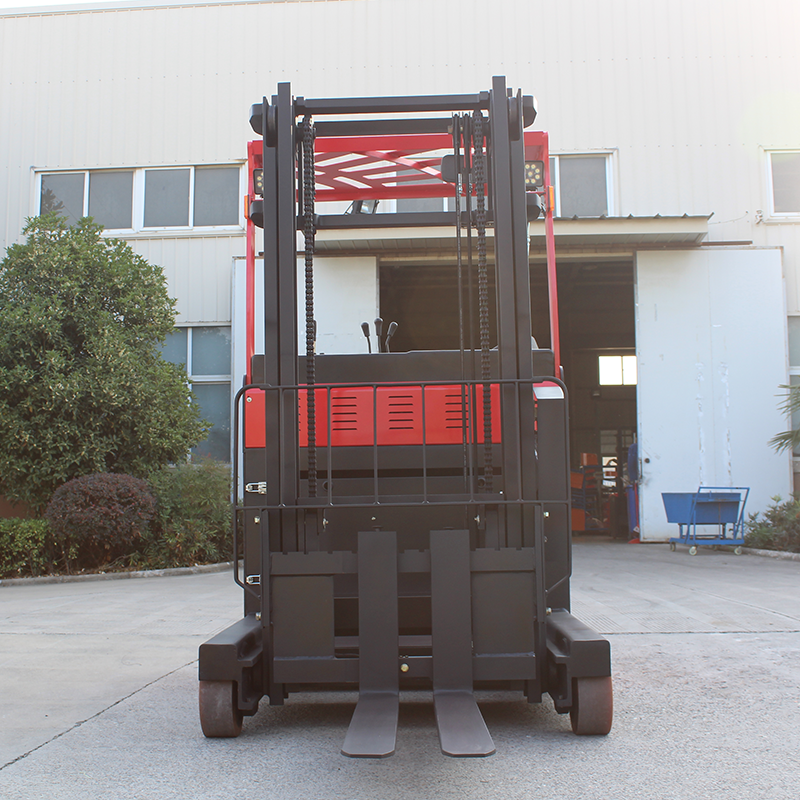

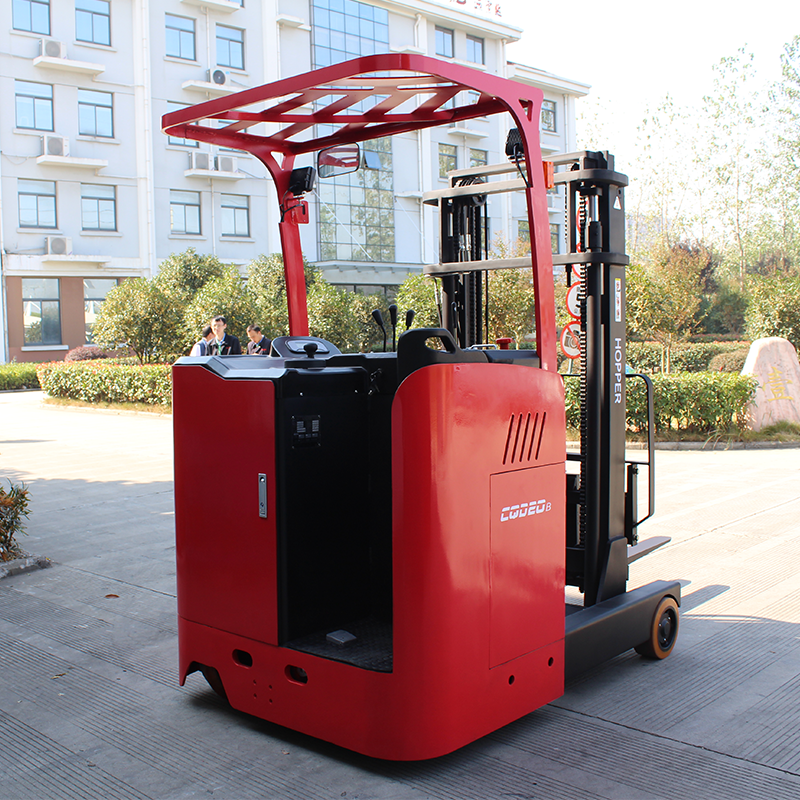

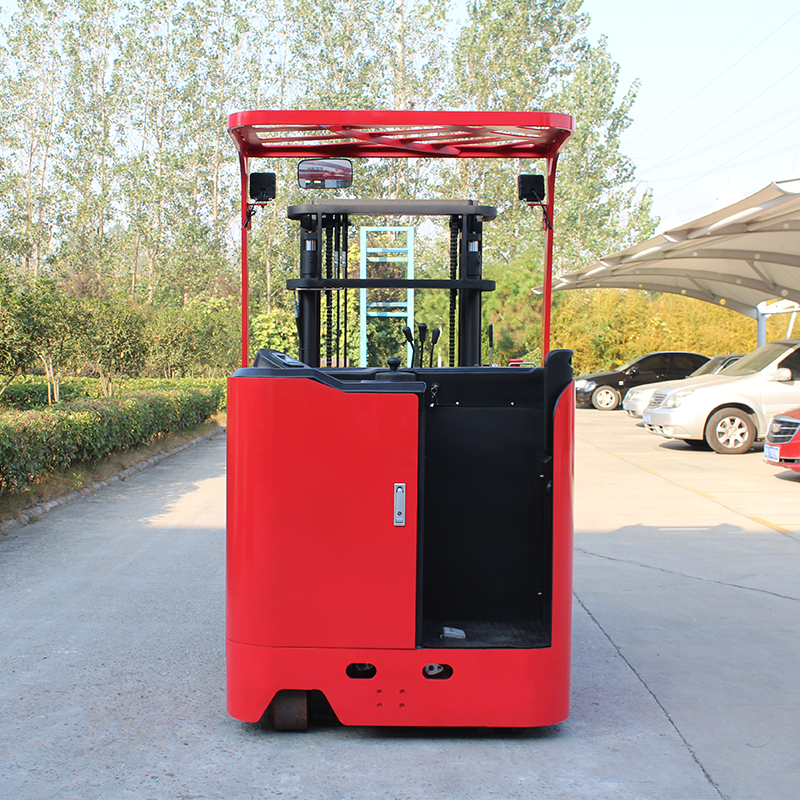

Green work environment
Easy operation
High efficiency
Low maintenance cost
High cost-effective
Long handle design
| Identification | 1.1 | Manufacture's type designation | HOPPER | ||
| 1.2 | Model | CQD15B | |||
| 1.3 | Power Type | Electric | |||
| 1.4 | Type of operation | Stand-on | |||
| 1.5 | Steering Mode | Electric Power Steering | |||
| 1.6 | Load capacity/rated load | Q | kg | 1500 5 | |
| 1.7 | Load center distance | c | mm | 500 | |
| 1.8 | Loaddistance. center of drive axle to fork | X | mm | 160 | |
| 1.9 | Wheelbase | y | mm | 1375 | |
| Weight | 2.1 | Total Weight(with battery_ | kg | 2700 | |
| 2.2 | Axle Load(laden):Drive side/Load-bearing side | kg | |||
| 2.3 | Axle Load(unladen):Drive side/Load- bearing side | kg | / | ||
| Dimension | 3.1 | Overlength(Mast fronted/back) | L1/L2 | mm | 2820/2355 |
| 3.2 | Frame Length(without fork) | L | mm | 1760 | |
| 3.3 | Overall width | W1 | mm | 1270 | |
| 3.4 | Overheadloadguardheight | h7 | mm | 2260 | |
| 3.5 | Lif Height | h1 | mm | 3000 | |
| 3.6 | Lowered mast height | h2 | mm | 2100 | |
| 3.7 | Extended mast height | h4 | mm | 3900 | |
| 3.8 | Free lit height | h5 | mm | L | |
| 3.9 | Fork Dimension | I/e/s | mm | 1070X100X35 | |
| 3.1 | Type of fork carriage A, B | 2A | |||
| 3.11 | Fork carriage spread width | b2 | mm | 225-820 | |
| 3.12 | Fork carriage width | mm | 868 | ||
| 3.13 | Forkariagetiltforward/backward | a/B | 44625 | ||
| 3.14 | Distance between supporting arm and load side | b3 | mm | 920 | |
| 3.15 | Reach Distance | L3 | mm | 465 | |
| 3.16 | Height of supporting arm_ | h6 | mm | 310 | |
| 3.17 | Ground Clearance at the center of wheelbase (Min) | m1 | mm | 80 | |
| 3.18 | Turning Radius | Wa | mm | 1675 | |
| 3.19 | Aisle width for lengthwaysPalle size 1001200 | Ast | mm | 2860 | |
| 3.2 | Aisle width for lengthways(Pallet size 800*1200) | Ast | mm | 2810 | |
| Tyre | 4.1 | Tyre Type | Polyurethane | ||
| 4.2 | Tyre Size(Front) | mm | 267X114 | ||
| 4.3 | Tyre Size(Auxiliary wheel) | mm | 180X55 | ||
| 4.4 | Tyre Szedriving Whee) | mm | $343X135 | ||
| 4.5 | Wheels Quantity, front/rear (x=diving wheels) | 2/1x+2 | |||
| Performance | 5.1 | Traveling Speed(aden/unladen) | Km/h | 10月12日 | |
| 5.2 | Llfting Speed(laden/unladen) | mm/s | 270/375 | ||
| 5.3 | Lowering Speed(aden/unladen) | mm/s | 300/270 | ||
| 5.4 | Max.Gradient Performance S2 5min (laden/unladen) | % | 10月15日 | ||
| 5.5 | Service BrakeType | Electromagnetic | |||
| 5.6 | Parking Brake Type | Electromagnetic | |||
| Power Unit | 6.1 | Drive Motor Rating(AC) S2-60min | kW | 6.5 | |
| 6.2 | Lift Motor Rating(AC)S3-15% | kw | 12 | ||
| 6.3 | battery voltage/Capacity K5 | V/Ah | 48/350 | ||
| 6.4 | Battery Weight | kg | 650 | ||
| Others | 7.1 | Controller Brand | CURTIS | ||
| 7.2 | Controller Model | 2-1 234SE12222 | |||
| 7.3 | Sound level driver's ear according to EN 12053 | dB | 70 | ||
| CQD15B Mast parameters | |||||
| Designation | Lift height | Lowered mast height | Extended mast height | Free fitt height | Load capacity |
| mm | mm | mm | mm | kg | |
| One-stage | 1600 | 2100 | 2500 | 1600 | 1500 |
| Two sage | 2500 | 1850 | 3400 | / | 1500 |
| 3000 | 2100 | 3900 | / | 1500 | |
| 3500 | 2350 | 4400 | / | 1500 | |
| 4000 | 2600 | 4900 | / | 1500 | |
| Thee-sage ful feemast | 3500 | 1820 | 4400 | 1170 | 1500 |
| 4000 | 1985 | 4900 | 1350 | 1 500 | |
| 4500 | 2150 | 5400 | 1530 | 1200 | |
| 5000 | 2300 | 5900 | 1710 | 1000 | |
| 5500 | 2470 | 6400 | 1860 | 800 | |
| 6000 | 2640 | 6900 | 2030 | 600 | |
The AC brushless drive motor is maintenance-free and cost-saving; CURTIS AC control system, accurate control, higher efficiency Equipped with electronic steering, improve efficiency. Can be different lifting heights The imported integrated control system, smooth travel control, superior speed regulation performance;
Read More
The AC brushless drive motor is maintenance-free and cost-saving; CURTIS AC control system, accurate control, higher efficiency Equipped with electronic steering, improve efficiency. Can be different lifting heights The imported integrated control system, smooth travel control, superior speed regulation performance; The drive system adopts the guide rail damping structure, ensure that the driving wheel is always in contact with the road surface, ground contact,
Read More
Green work environment Easy operation High efficiency Low maintenance cost High cost-effective Long handle design
