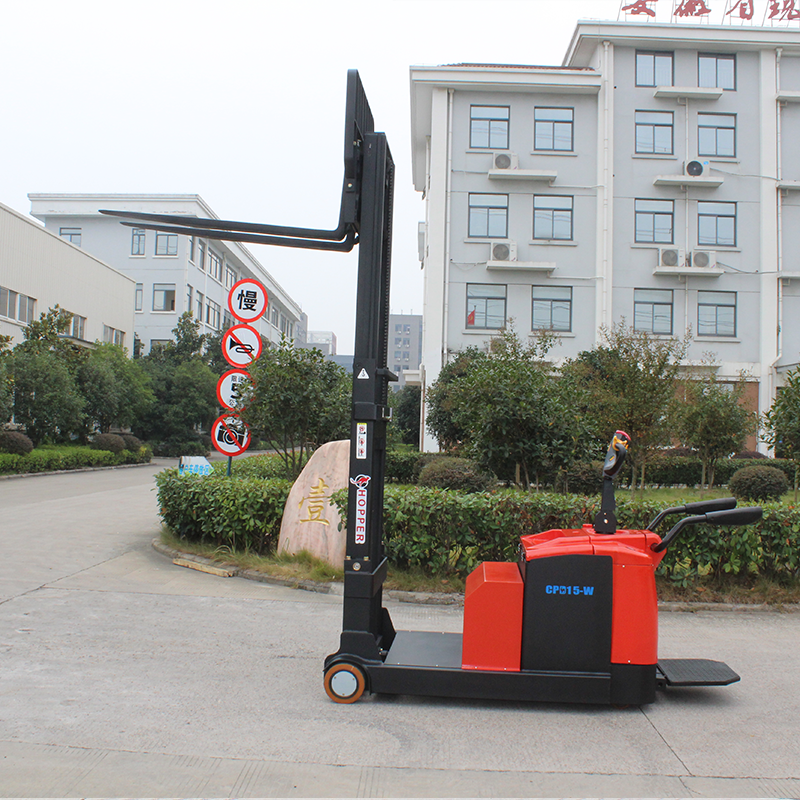

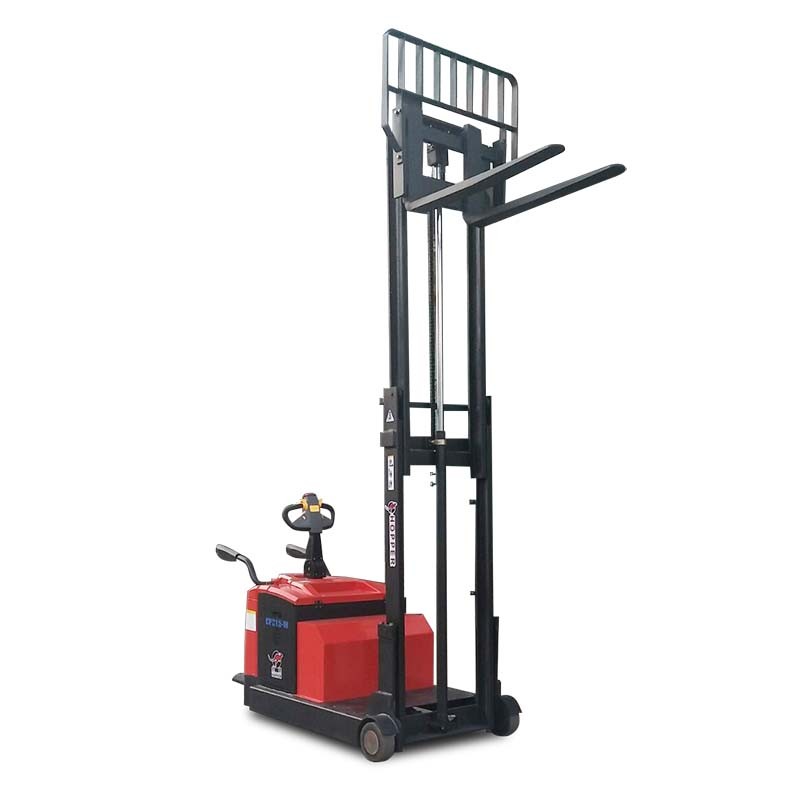

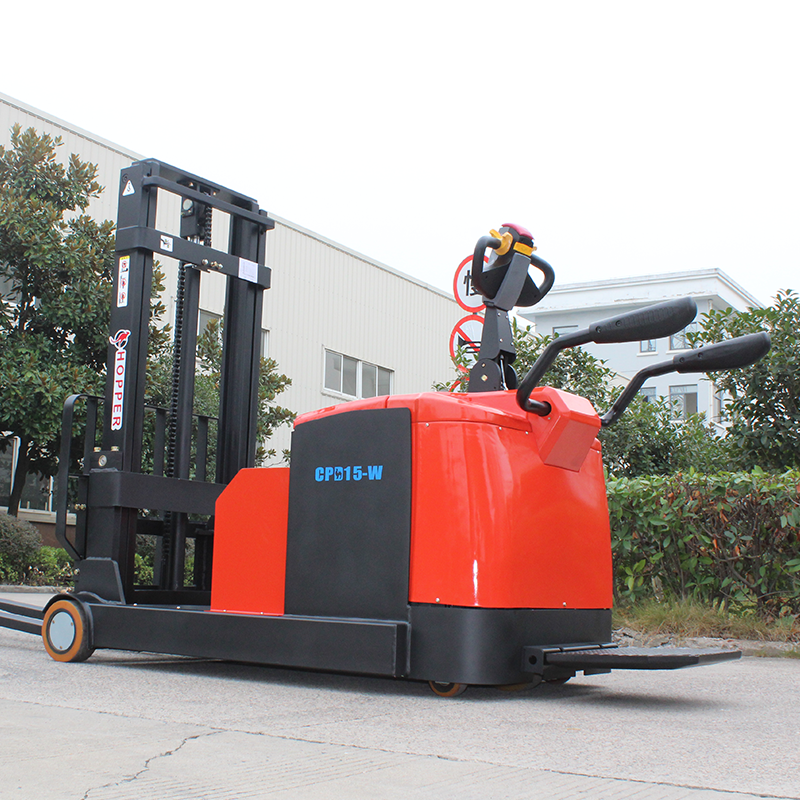

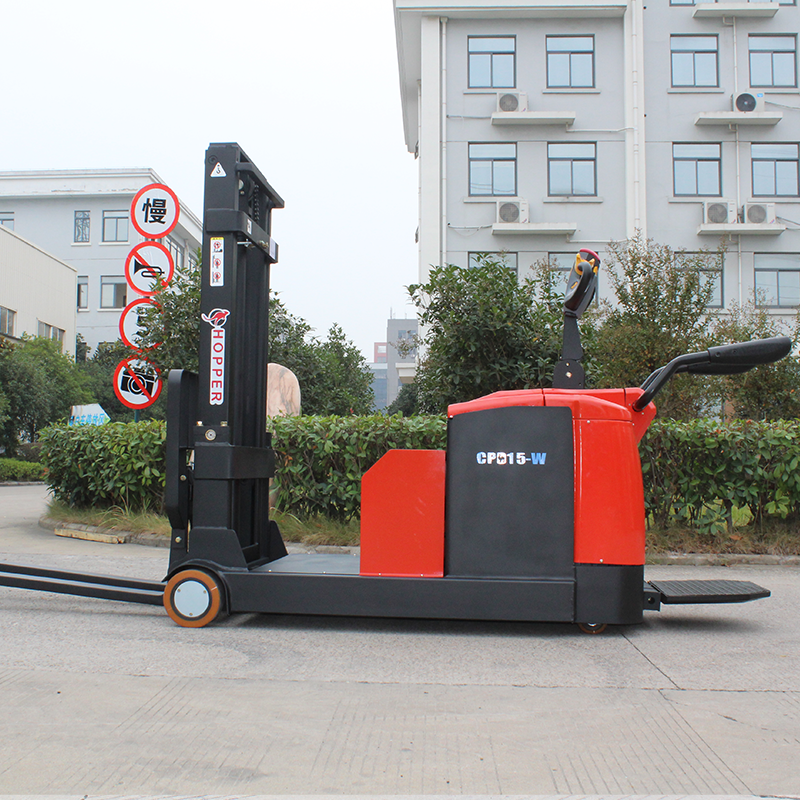

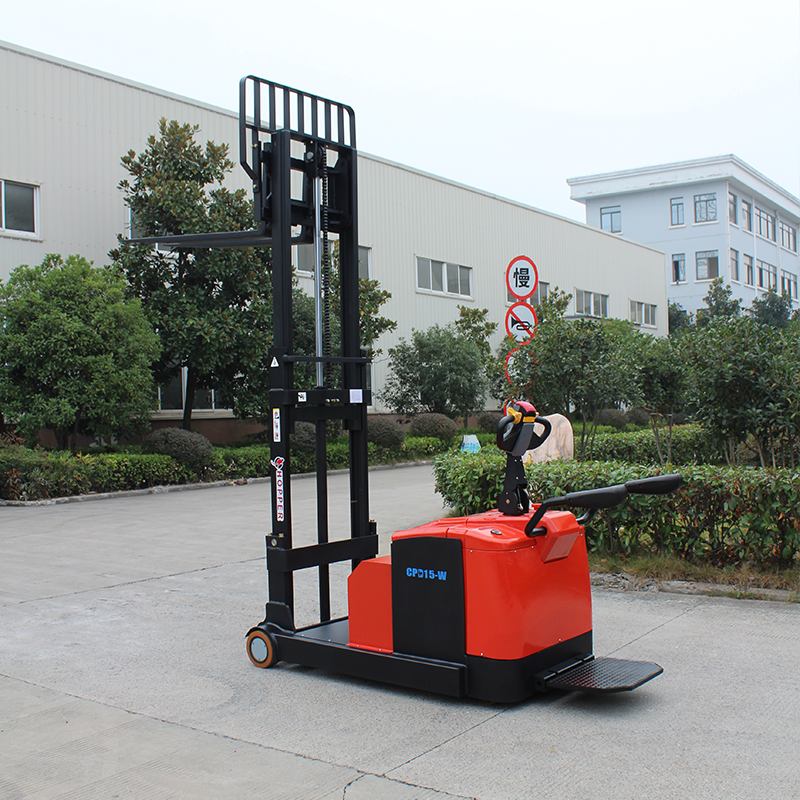

1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W
1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W
1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W
1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W
1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W
1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W
1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W
1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W

1.0T-1.5T Battery Counterbalance Stacker with Folding Fork CPD15-W

Load capacity/Rated load:  1000KG/1500KG



Frame Length (Pedal retracted/expanded without fork): 1655MM/2075 MM



Overall width(W1/W2): 880MM/1030MM



Turningradius:1560MM/2000MM

Identification 1.1 Manufacture's type designation                            HOPPER
1.2 Model     CPD10W CPD15W
1.3 Power Type                                       Electric
1.4 Type ofoperation                                    Stand-on
1.5 Steering Mode                            ElectricPowerSteering
1.6 Load capacity/rated load Q kg 1000 1500
1.7 Load center distance C mm 500 500
1.8 Load distance,center of drive axle to fork x mm 130 130
1.9 Wheelbase y mm 1300 1450
Weight 2.1 Total Weight(with battery)   kg 1830 1850
2.2 Axle Load(laden):Drive side/Load bearing side   kg 1043/787 1055/795
2.3 Axle Load(unladen):Drive side/Load-bearing side   kg 340/2490 400/2950
Dimension 3.1 Overall Length(Pedal retrac ted/expanded) L1/L2 mm 2730/3170 2880/3320
3.2 Frame Length (Pedal retracted/expanded without fork)   mm 1655/2075 1820/2245
3.3 Overall Width W1/W2 mm 880/1030 880/1030
3.4 Left Height h1 mm 3000 3000
3.5 Lowered mast height h2 mm 2050 2050
3.6 Extended mastheight h4 mm 3855 3855
3.7 Fork Demension l/e/s mm 1070×100×40 1070×100×40
3.8 Fork Mounting Class     2A 2A
3.9 Fork carriage spread width b2 mm 220-700 220-700
3.1 Fork carriage width   mm 737 737
3.11 Ground Clearance atcenter of wheel base (Min) m1 mm 50 50
3.12 Height ofOperating Handlebar(Min./Max) h14 mm 1000/1450 1000/1450
3.13 Turning Radius Wa mm 1560/2000 1710/2145
3.14 Asle wdth for eahghloalseile 01010010lec erated/epanded     3050/3470 3195/3620
3.15 Aisle widthfor enghaspallet size 800 ldareractedepanded     3165/3605 3315/3750
Tyre 4.1 Tyre Type     Polyurethane Polyurethane
4.2 Tyre Size(Front)   mm φ210x85 φ210x85
4.3 Tyre Size(auxlliary wheel)_   mm φ115x55 φ115x55
4.4 Tyre Size (riving Wheel   mm φ230x75 φ230x75
4.5 Wheels Quantity, front/rear(x=drivingwheels)     2/1x+2 2/1x+2
Performance 5.1 Traveling Speed(laden/unladen)   Km/h 5月6日 4.5/5
5.2 Lifting Speed(laden/un laden)   mm/s 80/110 80/110
5.3 LoweringSpeed(laden/unladen)   mm/s 140/120 140/120
5.4 Max. Gradient performance s2 5min (laden/unladen)   % 44689 44689
5.5 Service BrakeType                   Electromagnetic
5.6 Parking Brake Type                   Electromagnetic
PowerUnit 6.1 Drive Motor Rating(AC)S2 -60min   kW 1.5 1.5
6.2 Lift Motor Rating(DC)S3-15%   kW 2.2 2.2
6.3 BatteryVoltage/Capacity K5   V/Ah 24/210 24/210
6.4 Battery Weight   kg 188 188
Others 7.1 Controller Brand     CURTIS CURTIS
7.2  Controler Model     1232E 1232E
7.3 Sound level at driver'sear accordingtoEN 12053   dB 70 70

CPD10W Mast parameters
Designation Liftheight Lowered mastheight Lowered mast height Extended mast height Loadcapacity
With shelves Withoutshelves
mm mm mm mm kg
One-stage 1600 2050 2455 2090 1000
Two-stage 2500 1800 3355 3020 1000
3000 2050 3855 3520 1000
3500 2300 4355 4020 800
4000 2550 4855 4520 500

CPD15W Mast parameters
Designation Lift height Lowered mastheight Lowered mast height Extended mast height Loadcapacity
With shelves Withou t shelves
mm mm mm mm kg
One-stage 1600 2050 2455 2090 1500
Two-stage 2500 1800 3355 3020 1500
3000 2050 3855 3520 1500
3500 2300 4355 4020 1300
4000 2550 4855 4520 1000
