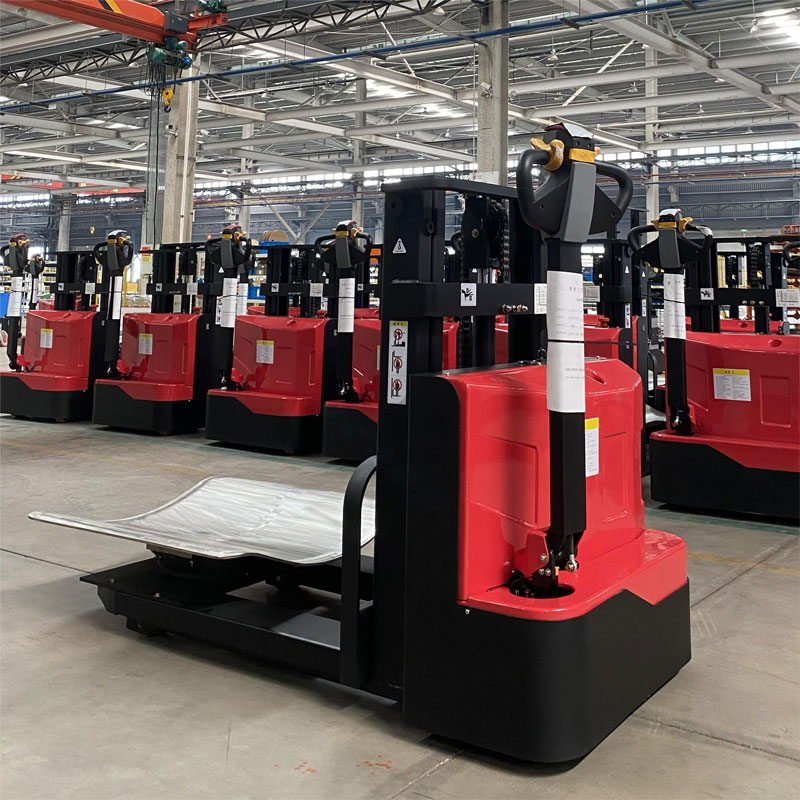

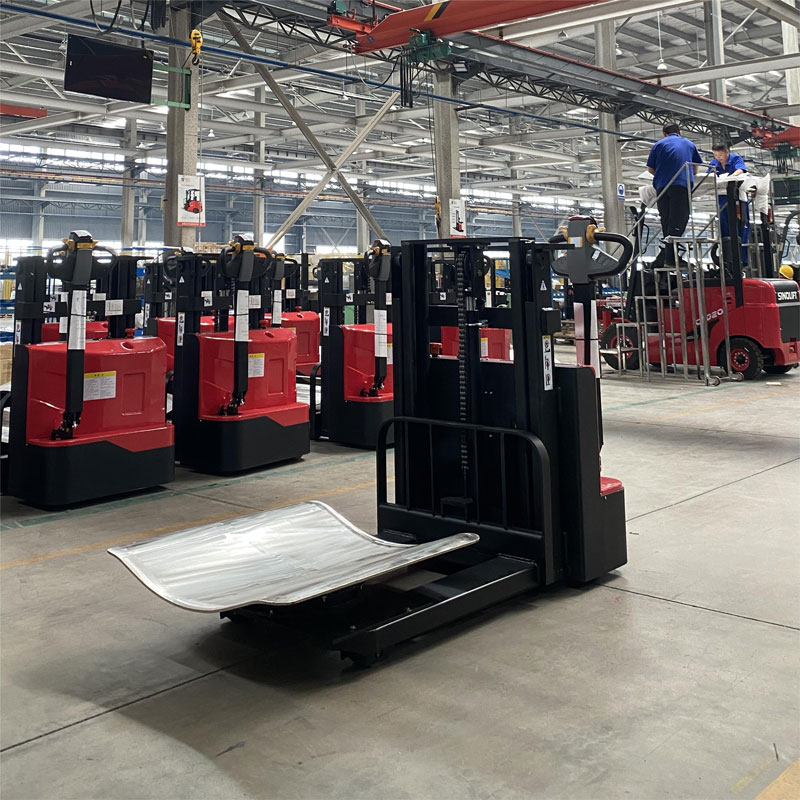

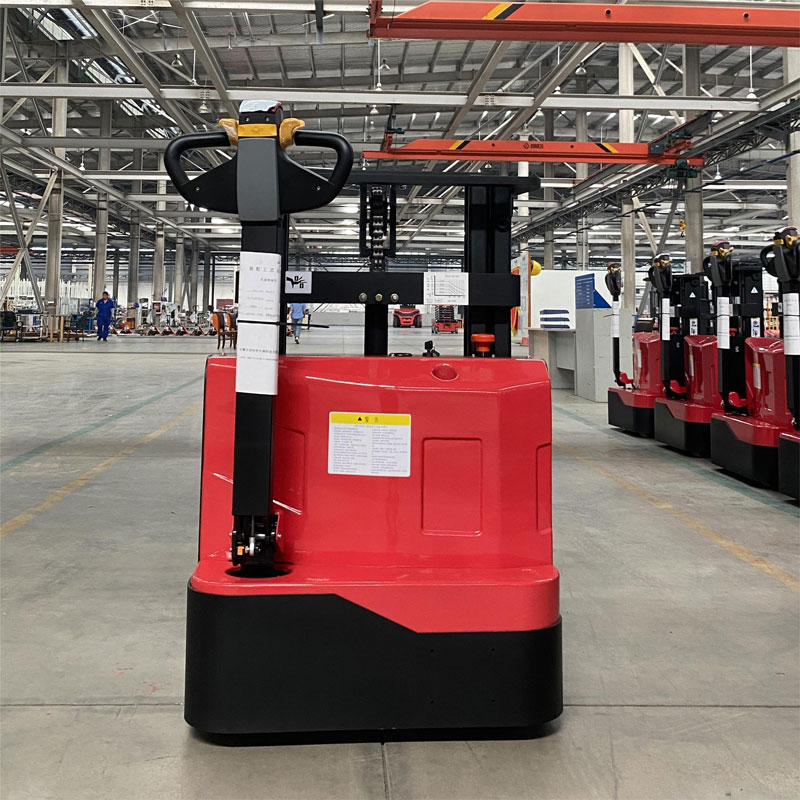

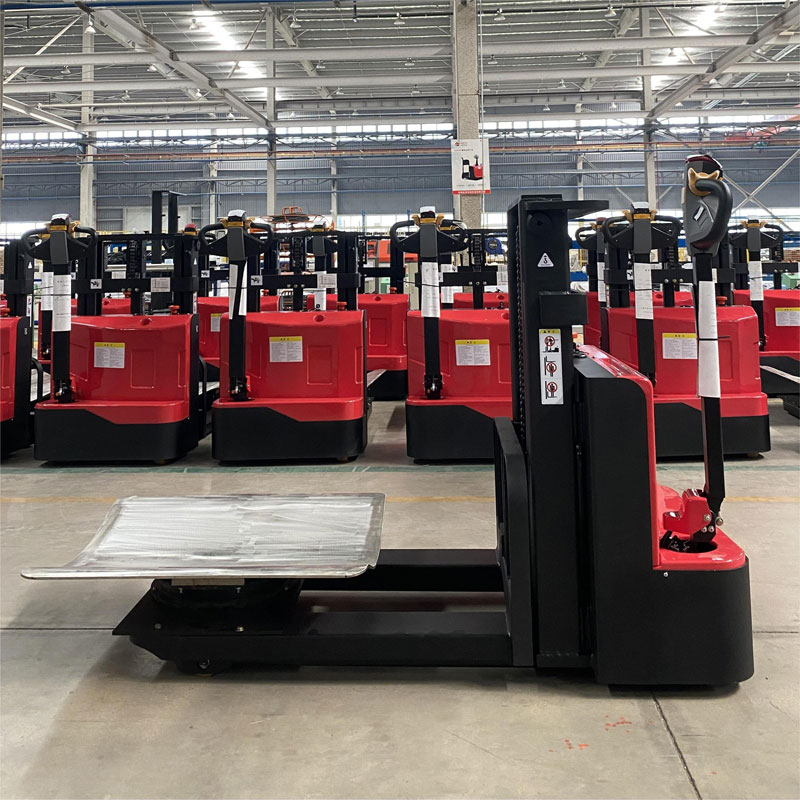

Hopper pedestrian pallet stacker is a ideal product developed for warehouse and logistics applications:
Higher cost performance and lower maintenance cost;
Floating universal wheels to ensure stable driving;
CURTIS control system, precise control and higher efficiency;
Adopting permanent magnet motor with excellent performance and low heat generation;
Standard 80Ah maintenance-free battery, optional 100Ah battery, which can meet different use time;
The pallet stracker has regenerative braking and slope protection against sliding down to ensure safe operation;
Easy to maintain, disassemble and assemble with one-piece cover.
| Features | 1.1 | Manufacturer's type designation | HOPPER | ||
| 1.2 | Model | CDD15 | |||
| 1.3 | Power Type | Electric | |||
| 1.4 | Type of operation | Pedestrian | |||
| 1.5 | Steering Mode | Mechanical | |||
| 1.6 | Load capacity/rated load | Q | kg | 1500 | |
| 1.7 | Load center distance | C | mm | 600 | |
| 1.8 | Wheelbase | y | mm | 1240 | |
| Weight | 2.1 | Total Weight(with | kg | 560 | |
| 2.2 | Axle Load(laden):Drive side/Load-bearing side | kg | 750/1310 | ||
| 2.3 | Axle Load(unladen):Drive side/Load-bearing side | kg | 400/160 | ||
| Dimension | 3.1 | Overall Length | L1 | mm | 1755 |
| 3.2 | Overall Width | W1 | mm | 800 | |
| 3.3 | Lift Height | h1 | mm | 1600 | |
| 3.4 | Lowered mast height | h2 | mm | 2065 | |
| 3.5 | Extended mast height | h4 | mm | 2065 | |
| 3.6 | Fork Dimension | l/e/s | mm | 1150×160×60 | |
| 3.7 | Width of Fork | b2 | mm | 560/685 | |
| 3.8 | Min.Fork Height | h3 | mm | 85 | |
| 3.9 | Ground Clearance at center of wheelbase（Min） | m1 | mm | 30 | |
| 3.10 | Height of Operating Handlebar(Min./Max) | h14 | mm | 1290 | |
| 3.11 | Turning Radius | Wa | mm | 1435 | |
| 3.12 | Aisle width for lengthways(Pallet size 1000*1200)(Pedal retracted/expanded) | mm | 2225 | ||
| 3.13 | Aisle width for lengthways(Pallet size 800*1200)(Pedal retracted/expanded) | mm | 2150 | ||
| Tyre | 4.1 | Tyre Type | Polyurethane | ||
| 4.2 | Tyre Size(Front) | mm | φ80*70 | ||
| 4.3 | Tyre Size(Auxiliary wheel) | mm | φ115*55 | ||
| 4.4 | Tyre Size(Driving Wheel) | mm | φ210*70 | ||
| 4.5 | Wheels Quantity, front/rear (x=driving wheels) | 2/1x+1 | |||
| Function | 5.1 | Traveling Speed(laden/unladen) | Km/h | 3.2/3.3 | |
| 5.2 | Lifting Speed(laden/unladen) | mm/s | 100/135 | ||
| 5.3 | Lowering Speed(laden/unladen) | mm/s | 155/150 | ||
| 5.5 | Max.Gradient performance s2 5min (laden/unladen) | % | 3/5 | ||
| 5.6 | Service Brake Type | Electromagnetic | |||
| 5.7 | Parking Brake Type | Electromagnetic | |||
| Power | 6.1 | Drive Motor Rating(AC)S2-60min | kW | 0.75 | |
| 6.2 | Lift Motor Rating(DC)S3-15% | kW | 2.2 | ||
| 6.3 | Battery Voltage/Capacity K5 | V/Ah | 24/80 | ||
| 6.4 | Battery Weight | kg | 50 | ||
| Others | 7.1 | Controller Brand | CURTIS | ||
| 7.2 | Controller Model | 1212P | |||
| 7.3 | Sound level at driver's ear according to EN 12 053 | dB | 70 | ||
Hopper pedestrian pallet stacker is a ideal product developed for warehouse and logistics applications: Higher cost performance and lower maintenance cost; Floating universal wheels to ensure stable driving; CURTIS control system, precise control and higher efficiency; Adopting permanent magnet motor with excellent performance and low heat generation; Standard 80Ah maintenance-free battery, optional 100Ah battery, which can meet different use time; The pallet stracker has regenerative braking and slope protection against sliding down to ensure safe operation; Easy to maintain, disassemble and assemble with one-piece cover.
