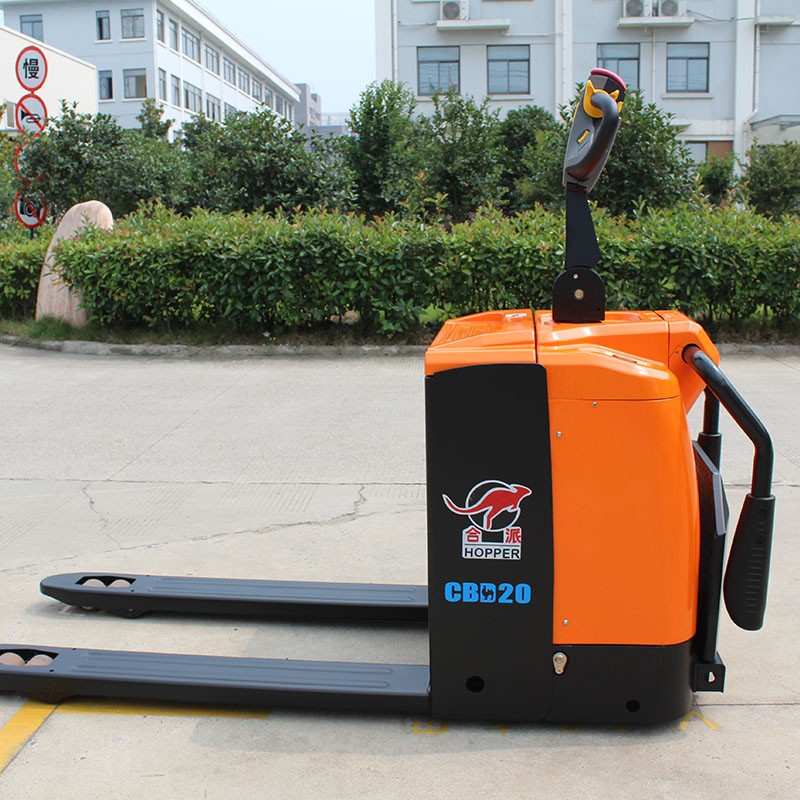

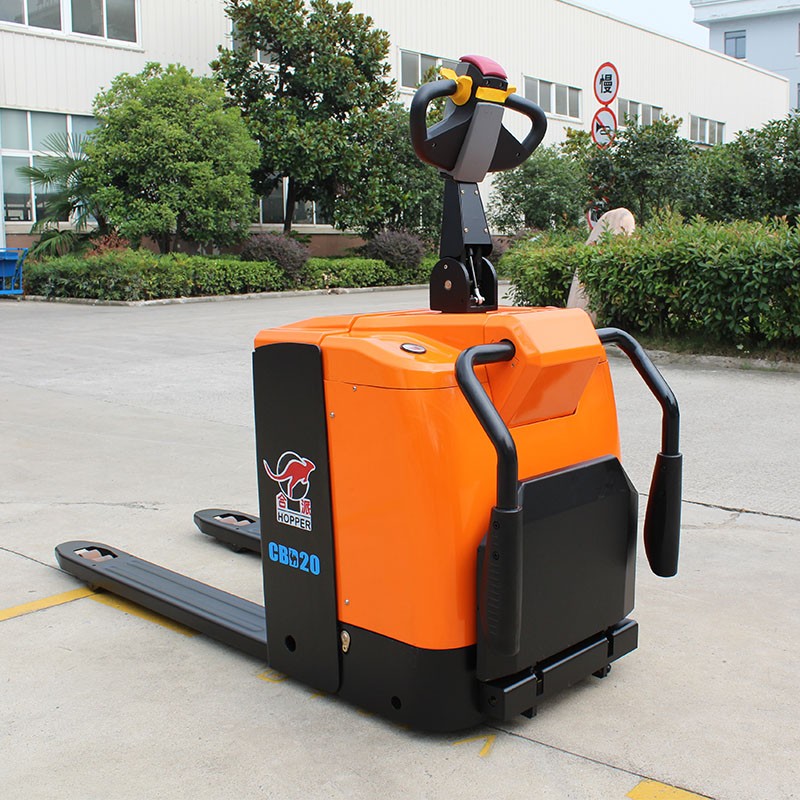

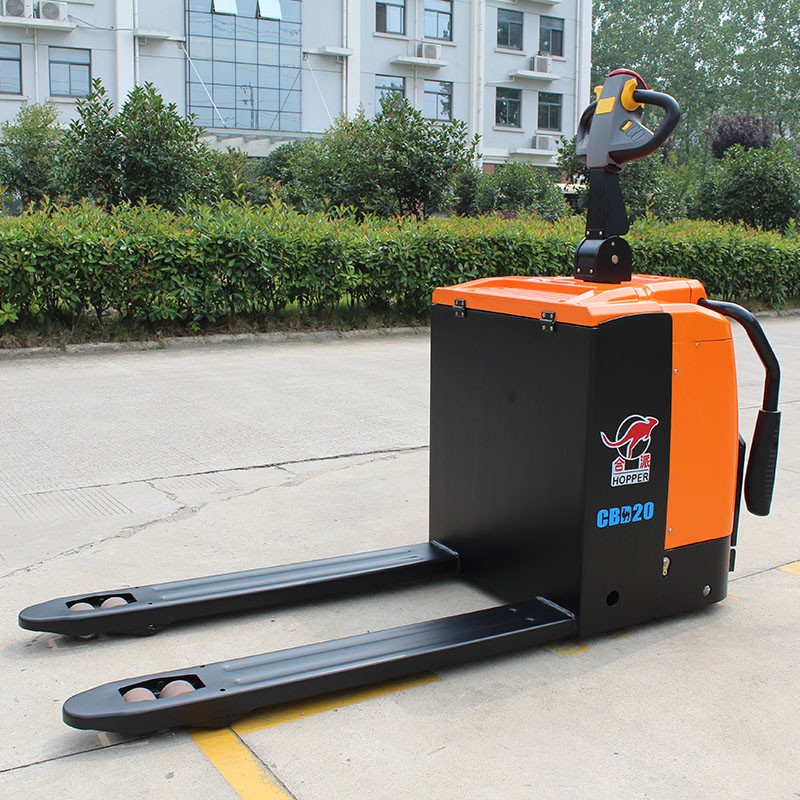

High-quality hydraulic power unit, low noise, low vibration, strong sealing,
Precise electrical limit switch, accurately control the maximum lifting height, prevent damage to the motor;
The mechanized design of the control handle makes it convenient for left and right hand operations, simple operation, and improved driving comfort.
The drive motor adopts an AC motor, which is maintenance-free, has a long life,
No level to control the driving speed, and meet different driver rhythm;
| Notification | 1.1 | Manufacture's type designation | HOPPER | ||
| 1.2 | Model | CBD20 | |||
| 1.3 | Power Type | Electric | |||
| 1.4 | Type of operation | Stand-on | |||
| 1.5 | Steering Mode | Electric Power Steering | |||
| 1.6 | Load capacity/rated load | Q | kg | 2000 | |
| 1.7 | Load center distance | C | 600 | ||
| 1.8 | Wheel base | y | mm | 1400 | |
| Weight | 2.1 | Total Weight(with battery) | 585 | ||
| 2.2 | Axle Load(laden):Drive side/Load-bearing side | kg | 885/1700 | ||
| 2.3 | Axle Load(unladen):Drive side/Load-bearig side | kg | 490/95 | ||
| Dimension | 3.1 | OverallLength(Pedalretracted/expanded) | L1/L2 | mm | 1850/2265 |
| 3.2 | Overall Width | W1 | mm | 720 | |
| 3.3 | Fork Dimension | l/e/s | 1200×160×50 | ||
| 3.4 | Width of Fork | b2 | mm | 540/685 | |
| 3.5 | Min.Fork Height | h3 | 85 | ||
| 3.6 | Lift Height | h2 | mm | 195 | |
| 3.7 | Ground Clearance at center of wheelbase | m1 | 35 | ||
| 3.8 | Height of Operating Handlebar(Min./Max) | h14 | mm | 000 /145 | |
| 3.9 | Turning Radius(Pedal retracted/expanded) | Wa | 1675/2110 | ||
| 3.1 | Aisle width for lengthways(Palletsize1000*1200)(Pedal retracted/expanded) | Ast | mm | 41 | |
| 3.11 | Aisle width for lengthways(Pallet size 800*1200)(Pedal retracted/expanded) | Ast | mm | 2320/2755 | |
| Tyre | 4.1 | Tyre Type | Polyurethane | ||
| 4.2 | Tyre Size(Front) | mm | φ80x60 | ||
| 4.3 | Tyre Size(Auxiliary wheel) | φ115x55 | |||
| 4.4 | Tyre Size(Driving Wheel) | mm | φ230x75 | ||
| 4.5 | Wheels Quantity, front/rear(x=driving wheels) | 4/1x+1 | |||
| Performance | 5.1 | Drive Damping Method | |||
| 5.2 | Traveling Speed (laden/unladen) | Km/h | 44718 | ||
| 5.3 | Lifting Speed(laden/unladen) | mm/s | 2 | ||
| 5.4 | Lowering Speed(laden/unladen) | mm/s | 30/26 | ||
| 5.5 | Max.Gradient performance(laden/unladen) | % | 44691 | ||
| 5.6 | Service Brake Type | Electromagnetic/regeneration | |||
| 5.7 | Parking Brake Type | Electromagnetic | |||
| PowerUnit | 6.1 | Drive Motorrating(AC) S260min | kW | 12 | |
| 6.2 | Lift Motor rating(DC) S3 -15% | kW | 0.8 | ||
| 6.3 | Battery Voltage/Capacity K5 | V/Ah | 24/210 | ||
| 6.4 | Battery Weight | kg | |||
| Others | 7.1 | Controller Brand | Z1A8P8I | ||
| 7.2 | Controller Model | AC-0 | |||
| 7.3 | Sound levelatdriver's ear according to EN 12 053 | dB | 70 | ||
High-quality hydraulic power unit, low noise, low vibration, strong sealing, Precise electrical limit switch, accurately control the maximum lifting height, prevent damage to the motor; The mechanized design of the control handle makes it convenient for left and right hand operations, simple operation, and improved driving comfort. The drive motor adopts an AC motor, which is maintenance-free, has a long life, No level to control the driving speed, and meet different driver rhythm;
Read More
Maintenance-free AC drive system High quality controller, Electromagnetic brake, Concealed damper pedal design, high comfort when driving
Read More
Maintenance-free AC drive system, more rapid and accurate response, Curtis controller, stable and safer performance, AMP waterproof plug-in, greatly reducing the electrical failure rate; The double auxiliary wheels are arranged on both sides of the driving wheels, and turning automatically decelerates, more safe and stable driving; Electromagnetic brake, automatic brake when power off, to ensure that it will not slip when parked;
Read More
Load capacity/rated load: 2000 KG Overall width:720MM OverallLength(Pedalretracted/expanded):1850MM/2265MM Turning Radius(Pedal retracted/expanded):1675Wa/2110Wa
Read More
Maintenance-free AC drive system High quality controller, Electromagnetic brake, Concealed damper pedal design, high comfort when driving Maintenance-free AC drive system
