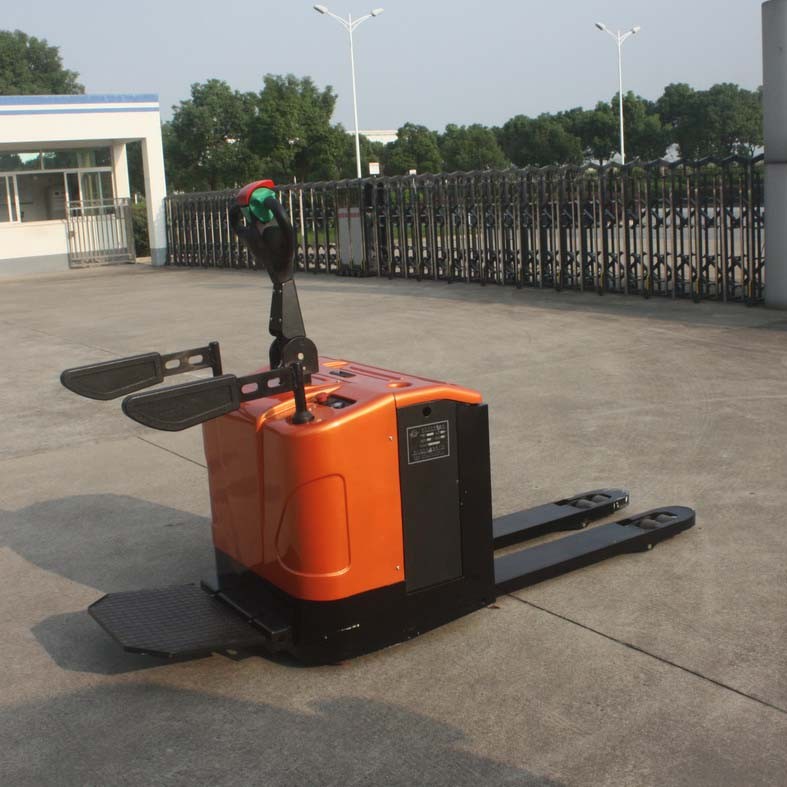

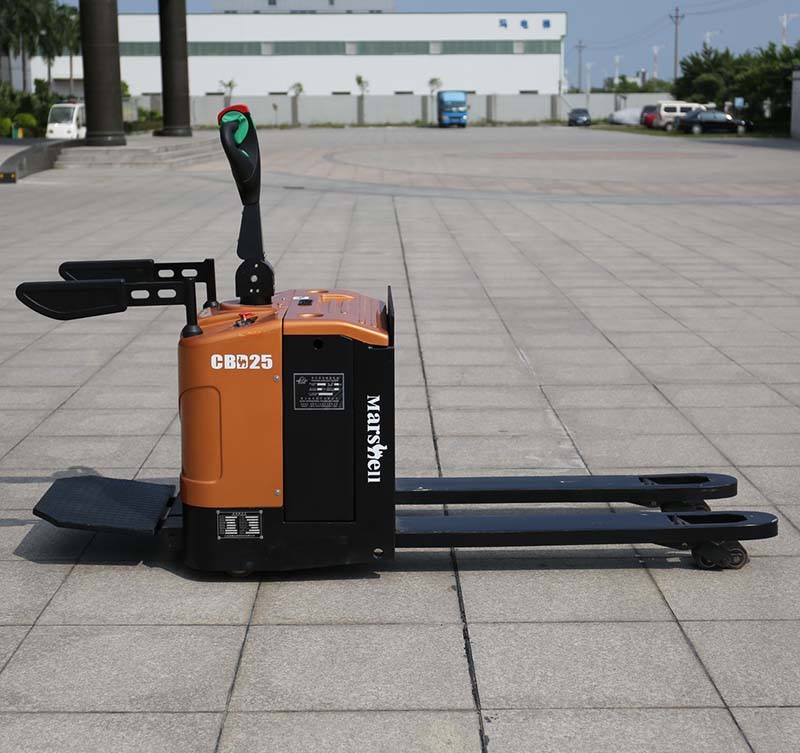

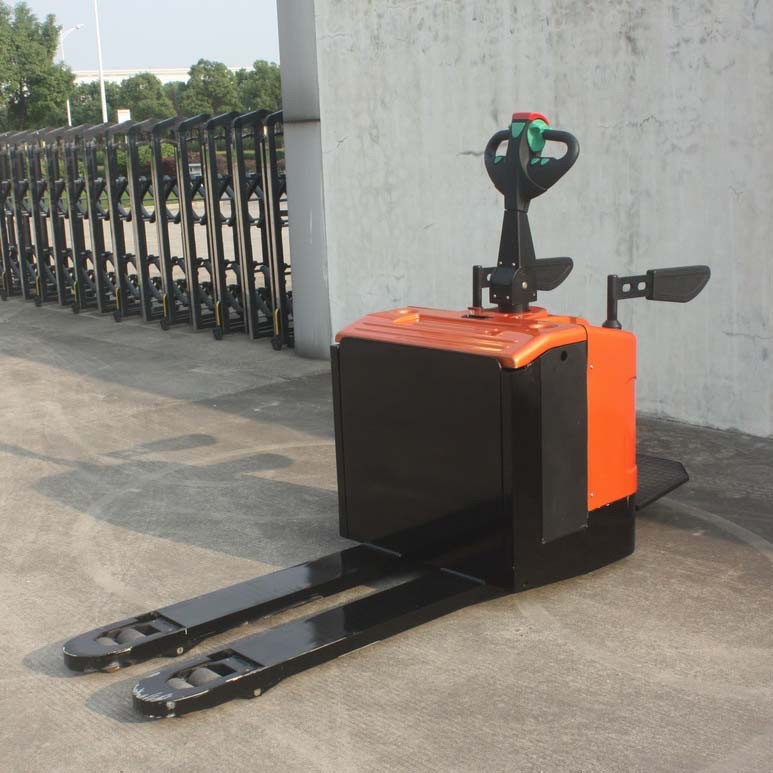

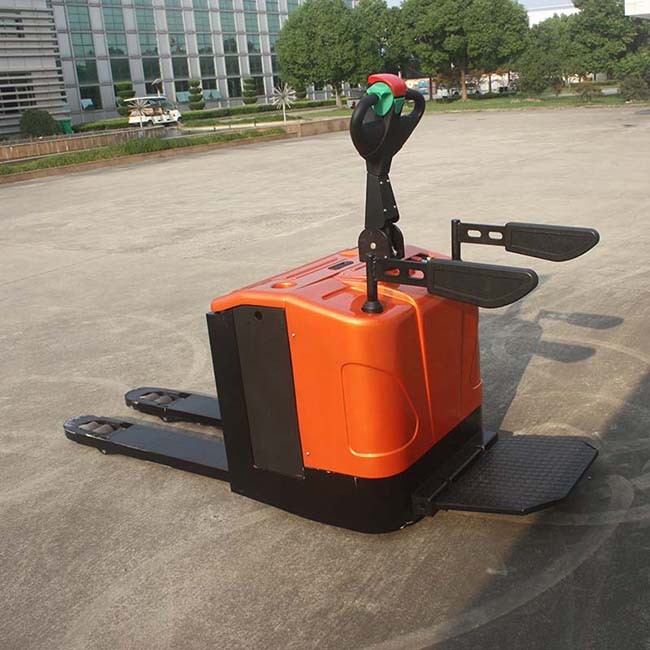

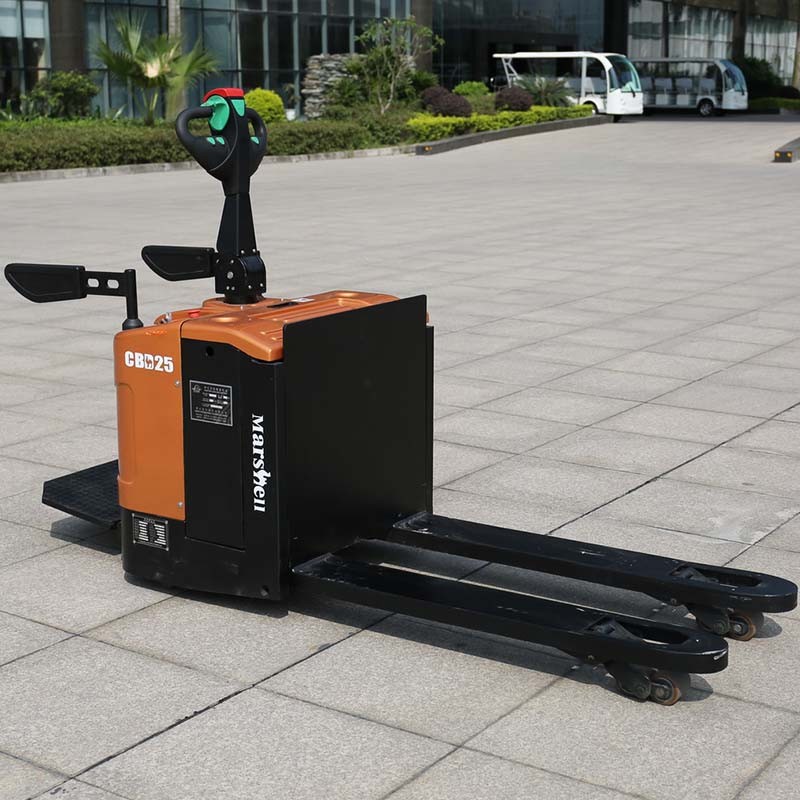

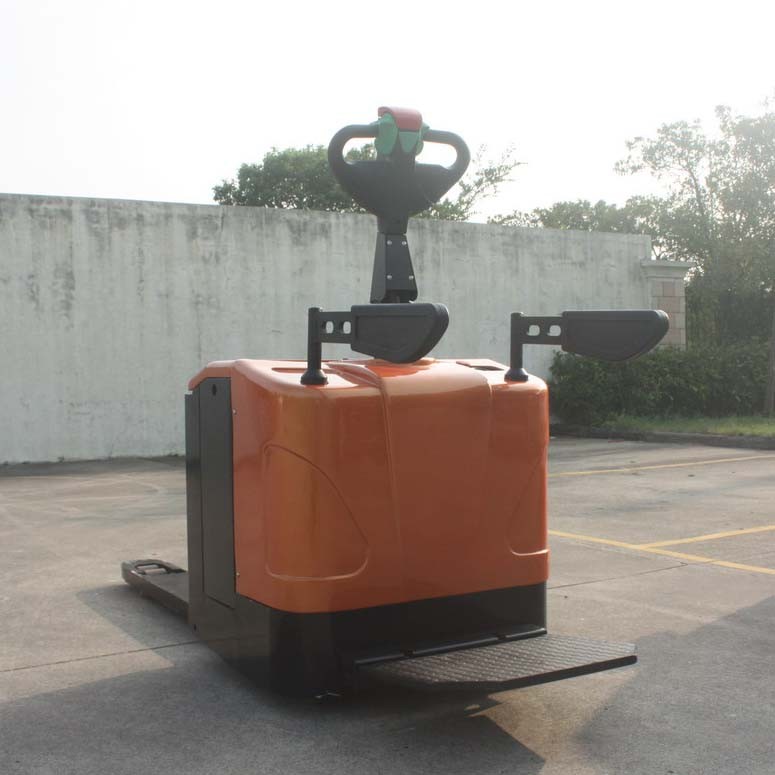

Maintenance-free AC drive system
High quality controller,
Electromagnetic brake,
Concealed damper pedal design, high comfort when driving
Maintenance-free AC drive system
| Identification | 1.1 | Manufacture's type designation | HOPPER | ||
| 1.2 | Model | CBD25 | |||
| 1.3 | Power Type | Electric | |||
| 1.4 | Type of operation | Stand-on | |||
| 1.5 | Steering Mode | Electric Power Steering | |||
| 1.6 | Load capacity/rated load | Q | kg | 2500 | |
| 1.7 | Load center dista nce | C | mm | 600 | |
| 1.8 | Wheel base | y | mm | 1480 | |
| Weight | 2.1 | Total Weight(with battery) | kg | 790 | |
| 2.2 | Axle Load(laden):Drive side/Load-bearing side | kg | 1120/2170 | ||
| 2.3 | Axle Load(unladen):Drive side/Load-bearing side | kg | 660 1 | ||
| Dimension | 3.1 | Overal Length(Pedal retracted/expanded) | L1/L2 | mm | 1885/2300 |
| 3.2 | Overall Width | W1 | mm | 790 | |
| 3.3 | Fork Dimension | l/e/s | mm | 1220×185×50 | |
| 3.4 | Width of Fork | b2 | mm | 550/685 | |
| 3.5 | Min.Fork Height | h3 | mm | 85 | |
| 3.6 | Lift Height | h2 | mm | 205 | |
| 3.7 | Ground Clearance at center of wheelbase | m1 | mm | 45 | |
| 3.8 | Height of Operating Handlebar(Min./Max) | h14 | mm | 0/ 14 | |
| 3.9 | Turning Radius(Pedal retracted/expanded) | Wa | mm | 1665/2150 | |
| 3.1 | Aise: width for lengthwayspallet size 1000* 100)(Pedalretracted/expanded | Ast | mm | 41 9 | |
| 3.11 | Aisle width for lengthways(alle size800* 1200)(Pedal retracted/expanded) | Ast | mm | 2320/2800 | |
| Tyre | 4.1 | Tyre Type | Polyurethane | ||
| 4.2 | Tyre Size(Front) | mm | φ80x80 | ||
| 4.3 | Tyre Size(Auxiliary wheel) | mm | 115x55 | ||
| 4.4 | Tyre Size(DrivingWheel) | mm | φ230x75 | ||
| 4.5 | Wheels Quantity, front/rear (x=driving wheels) | 4/1x+2 | |||
| Performance | 5.1 | Drive Damping Method | Guide column spring damping | ||
| 5.2 | Traveling Speed(laden/unladen) | Km/h | 6 6 | ||
| 5.3 | Lifting Speed(laden/unladen) | 20/25 | |||
| 5.4 | Lowering Speed(laden/unladen) | mm/s | 30 26 | ||
| 5.5 | Max. Gradient performance(laden/unladen) | % | 5月8日 | ||
| 5.6 | Service Brake Type | Electromagnetic/regeneration | |||
| 5.7 | Parking Brake Type | Electromagnetic | |||
| PowerUnit | 6.1 | Drive Motor rating(AC) S2-60min | kW | 15 | |
| 6.2 | Lift Motor rating(DC) S3-15% | kW | 2.2 | ||
| 6.3 | Battery Voltage/ Capacity K5 | V/Ah | 24/210 | ||
| 6.4 | Battery Weight | kg | 188 | ||
| Others | 7.1 | Controller Brand | CURTIS | ||
| 7.2 | Controller Model | 1232E | |||
| 7.3 | Sound level at driver's ear according to EN 12053 | dB | 70 | ||
High-quality hydraulic power unit, low noise, low vibration, strong sealing, Precise electrical limit switch, accurately control the maximum lifting height, prevent damage to the motor; The mechanized design of the control handle makes it convenient for left and right hand operations, simple operation, and improved driving comfort. The drive motor adopts an AC motor, which is maintenance-free, has a long life, No level to control the driving speed, and meet different driver rhythm;
