Electric Pallet Truck

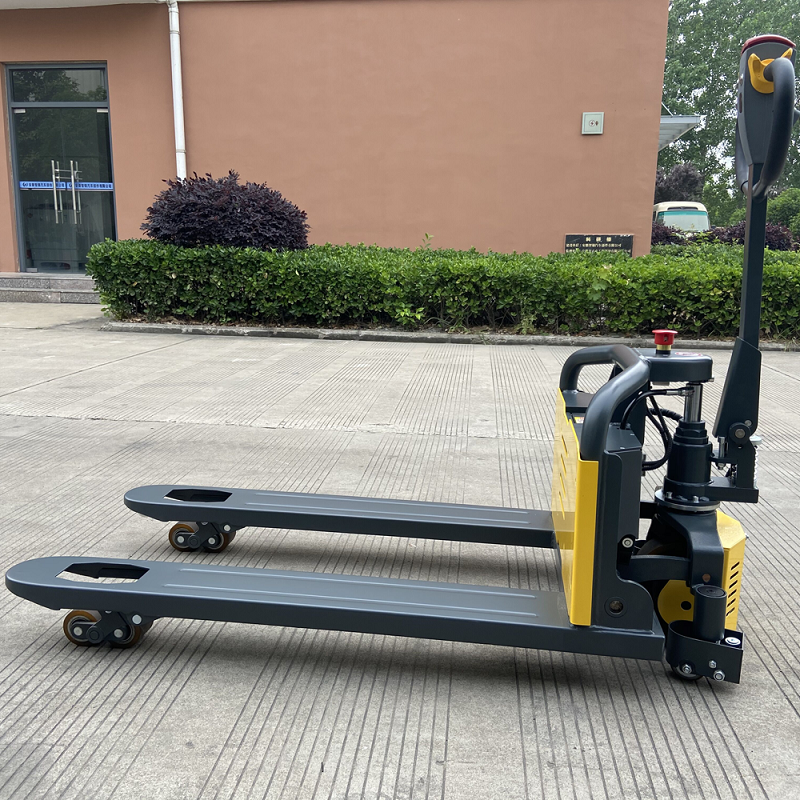

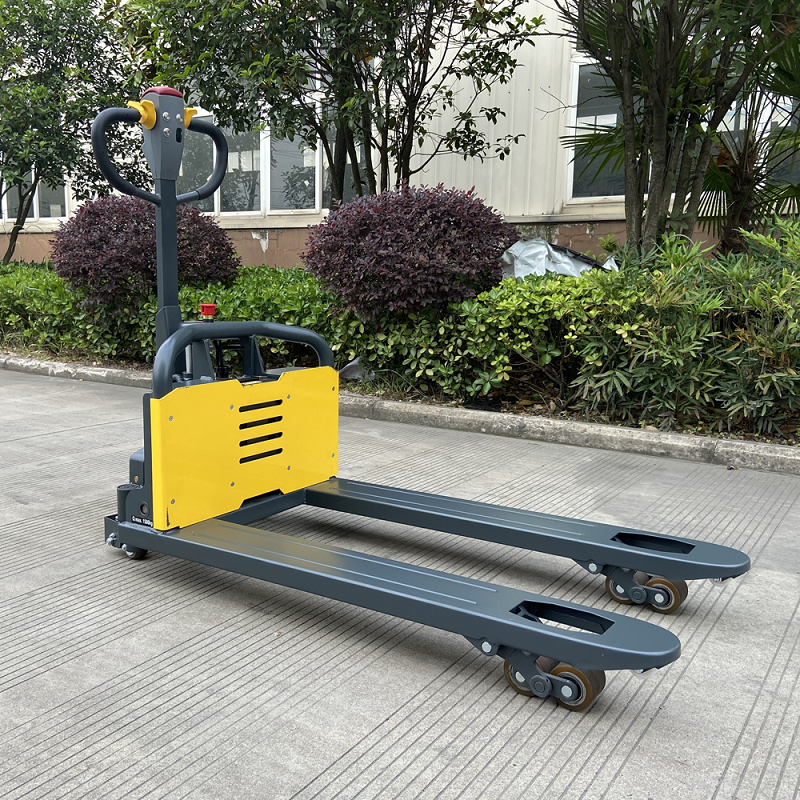

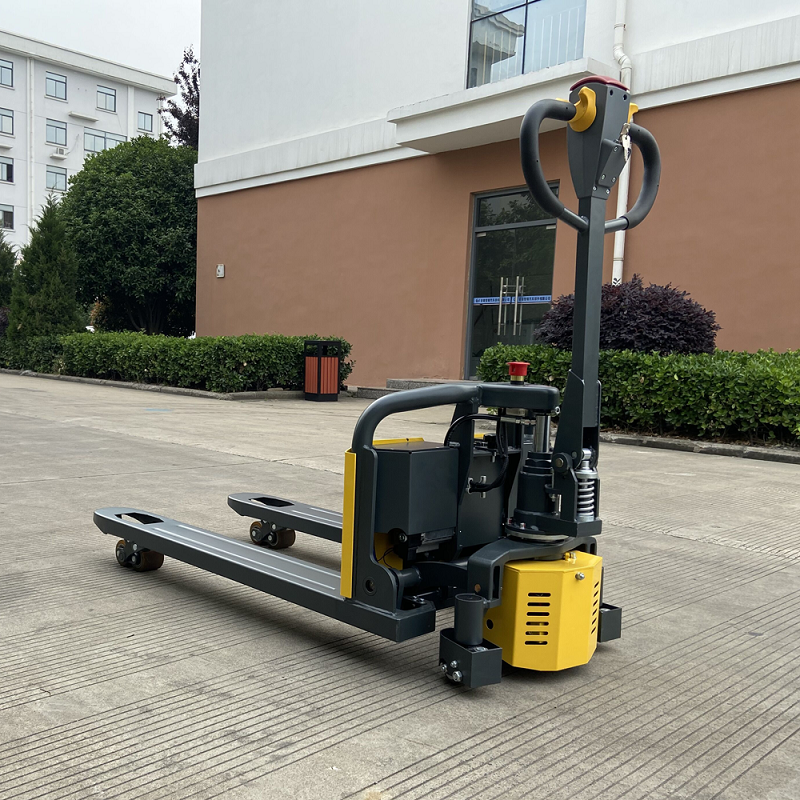

1.6 ton series Marshell Hopper Electric Pallet Truck CBH16 &CBD16
1.6 ton series Marshell Hopper Electric Pallet Truck CBH16 &CBD16
1.6 ton series Marshell Hopper Electric Pallet Truck CBH16 &CBD16
1.6 ton series Marshell Hopper Electric Pallet Truck CBH16 &CBD16

1.6 ton series Marshell Hopper Electric Pallet Truck CBH16 &CBD16

Load capacity/Rated load:  1600KG



Overall length: 1540 MM



Overall width:560/680MM



Turningradius:1350MM



Manufacture's type designation                                       HOPPER
Model     CBH16  CBD16
Power type     Electric Electric Electric Electric
Type of operation     Pedestrian Pedestrian
Load capacity/rated load   t 1.6 1.6
Load center distance   mm 600 600
Total weight(with lithium battery)   kg 145/150 155/160
Driving wheel size   mm ∮210x70 ∮210x70
Tyre size (Front)   mm ∮80x70 ∮80x70
Wheels material     PU coated iron core PU coated iron core
Overall length L1 mm 1540 1540
Overall width B mm 560/680 560/680
Height of operating Handlebar(Max) H3 mm 1220 1220
Frame height H4 mm 560 560
Lifting height(Max) H1 mm 190 190
Lifting height(Min) H mm 85 85
Fork length L mm 1150 1150
Fork Dimension B1 mm 160 160
Turning radius R mm 1350 1350
Center distance between front and rear wheels L2 mm 1220 1220
Traveling speed(laden/ unladen)   km/h 4.5 4.5
Max. Gradeability (laden/unladen)   % 44260 44260
Drive motor rating   kw 0.75 0.75
Lift motor rating   kw / /
Battery voltage/capacity   V/Ah 24/20 24/20
